The Kodiak is certified under Part 23 of the Federal Aviation Regulations in the Normal Category for day, night, VFR, and IFR flight operations, and certified for flight into known icing when equipped with optional TKS Ice Protection System.
Avionics (Avionics cost will be less during warranty period)
Engine HSI @ 2,000 hours * **
Engine OH @ 4,000 hours TBO * **
Prop OH @ 4,000 hours TBO or 6 years
Total Direct Cost Per Hour **
Direct Cost Per Nautical Mile **
Cost per Seat Mile (based 8 pax seats)
Annual Hourly Utilization
* Reserves are non-cash items that are spent only at the time of overhaul.
** Based on 300 NM Block Speed of 161 Kts @ Maximum Cruise Power @ 12,000’
*** Based on Pratt & Whitney estimates
**** Based on Average Jet-A price of 3000+ FBO’s in the USA at the time of revision
THE FIGURES CONTAINED ON THESE PAGES ARE ONLY ESTIMATES. YOUR ACTUAL COST OF OPERATION WILL VARY FROM THESE FIGURES due to differences in accounting methods, cost of fuel and oil, labor services, engine overhaul, type of avionics installed, and the manner in which the aircraft is used (number of hours flown annually, power settings, type of airports used, environmental condition, pilot capability, etc.) Kodiak cannot and does not represent that these figures are anything other than estimated average costs of operation, and specifically disclaims any liability for the accuracy of these estimates. They are to be used only for purposes of comparison.
The top-of-the-line Summit interior offers club seating, optional tables and cabinets, and carpet that allows you to conduct a business meeting in comfort on the way to a conference or a project site. This interior also makes the Kodiak great for family trips. A true example of rugged refinement, Summit features individual headset jacks, oxygen, LED lighting, AC control, and charging ports for your portable electronic devices.
Six all-leather fully adjustable seats
Seats are available in warm brown or cool gray
Recline function so you can stretch out and relax
Individual tracking systems for additional leg room at each seat
Fold down arm rest
Comfortable car-like safety harness
Easy access to microphone/headphone jacks and oxygen
Individual storage pockets in the sidewall at each seat
Cup holders in both the cabin and cockpit
Overhead PSU air and LED lighting units at each seat
Club seating with two fold-out tables (one on each side)
Two cabinets with combined 2.5 cubic feet of space
Cabinet features include removable ice bins, thermos provisions and storage for the POH, maps, etc.
Dual zone cabin and cockpit ventilation
The Timberline interior is lightweight, yet it can withstand the heavy use typically seen in charter operations that carry a combination of passengers and freight. The leather seats are easily removed (about 30 seconds) for effortless conversion between passengers and freight. The Timberline interior includes a carpeted interior, faux leather accent panels, seat storage pockets, and cup holders. You’ll be flying in style. Timberline seats have additional bolstering for added comfort, and the removable carpet provides extra comfort, warmth, and soundproofing. If you’re looking for the ruggedness of the Kodiak, but aren’t willing to sacrifice comfort, Timberline is the interior for you.
The seats are offered in warm brown or cool gray.
THE STANDARD TIMBERLINE INTERIOR COMES WITH:
6 pax seats
8 Passenger headset jacks
8 Passenger PSU vents and LED reading lights
Storage pockets in the sidewall beside each seat
Cup holders in both the cabin and cockpit
Decorative arm ledge
Individually controlled pilot and passenger space AC
2-place oxygen system for crew

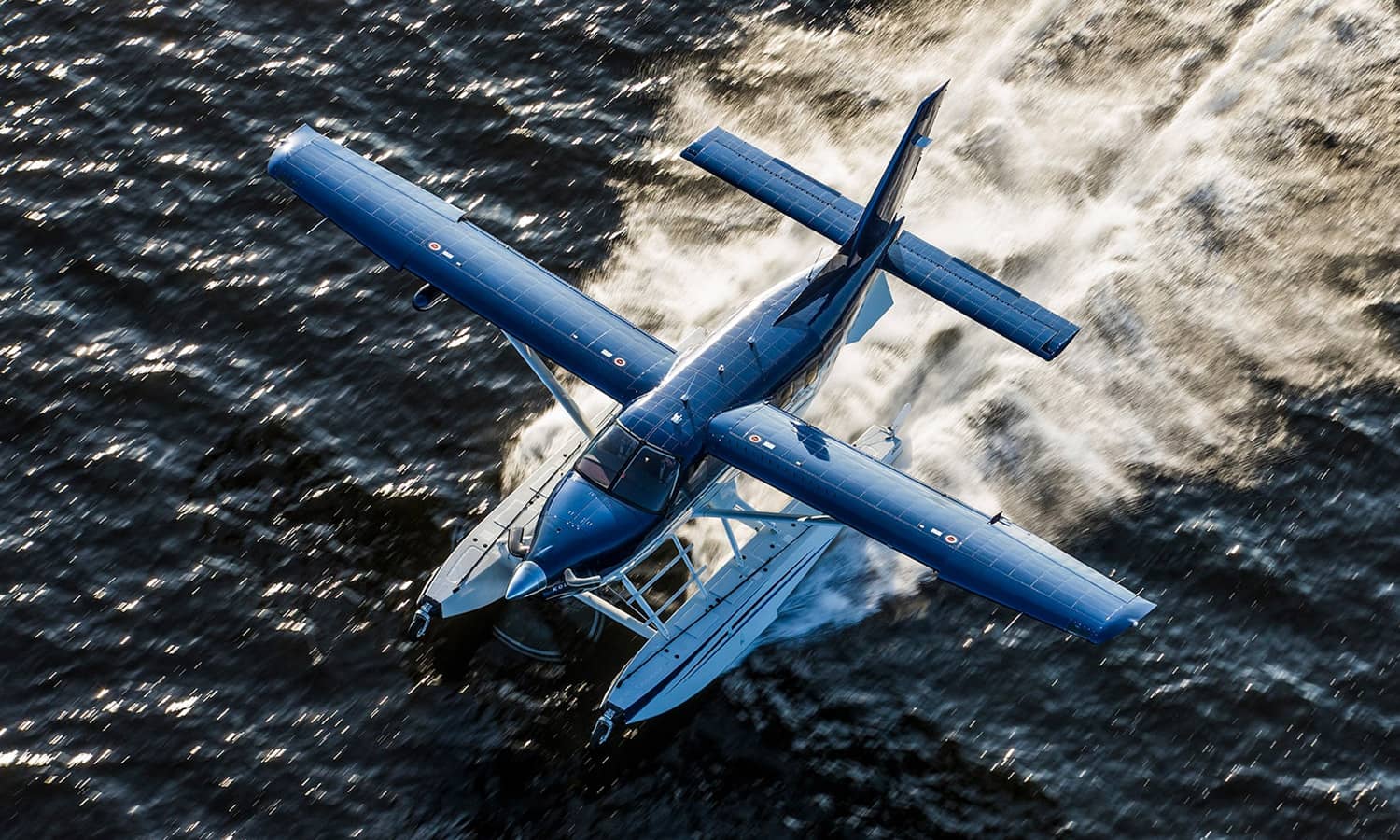

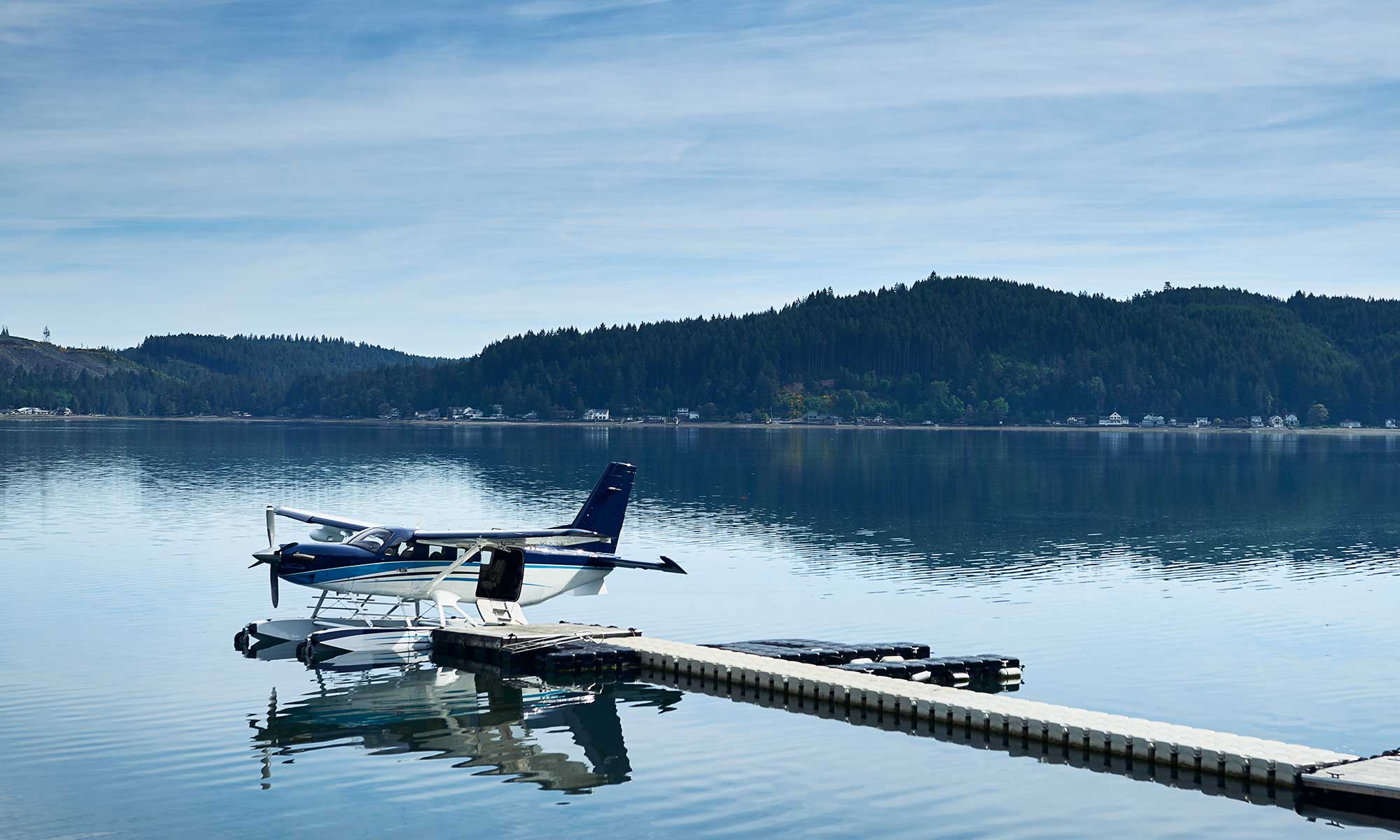

Safest, Most Efficient Seaplanes On The Market
Engineered to accept carbon fiber floats.
No structural upgrade required.
Corrosion resistant, salt water capable.

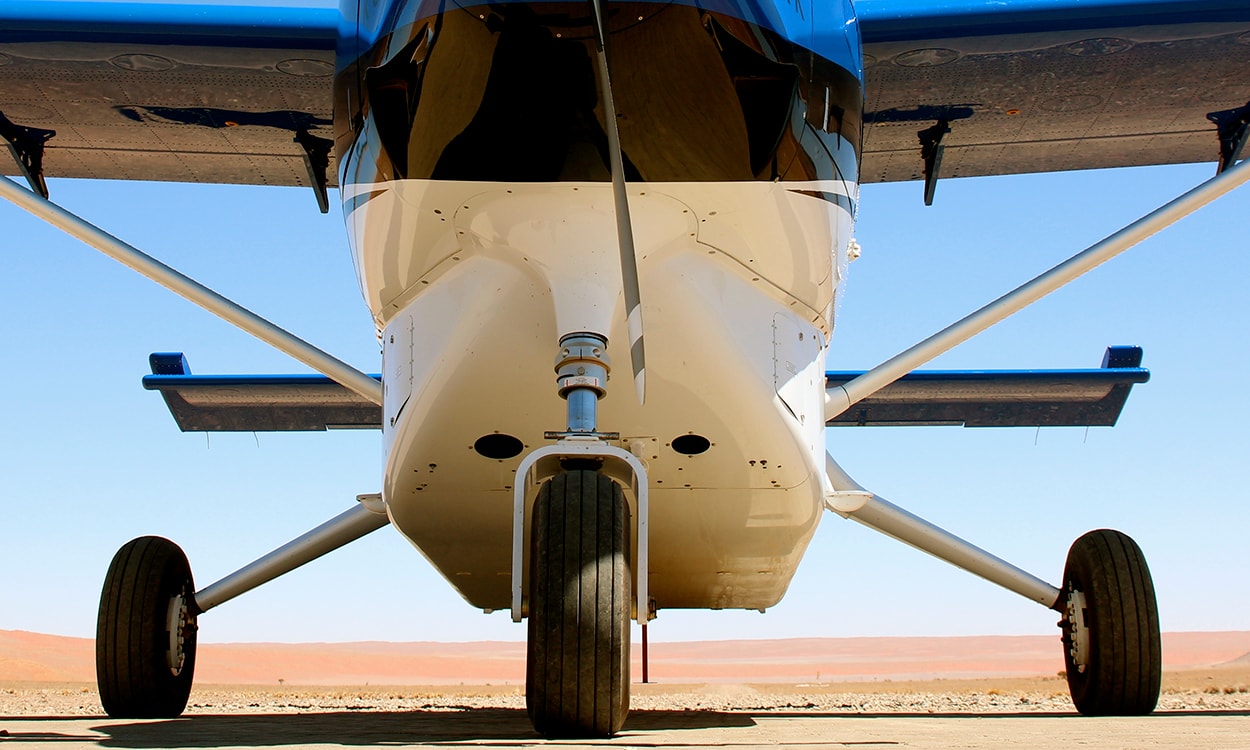

Take Everything Along With A Cargo Pod
A custom-fitted cargo pod is available for wheeled Kodiak aircraft. It has a maximum load-carrying weight of 750 lbs divided into three compartments with individual doors. Its clean aerodynamic design results in very little performance reduction — only 1-2 knots less in cruise speed.
All-Weather Ready With TKS Ice Protection.
The TKS system makes the Kodiak Certified for Flight into Known Ice (FIKI). It incorporates porous titanium panels attached to leading edges. The 16-gallon tank yields 2.5 hrs of operation in normal icing conditions. Windshield ice protection is provided through windshield sprayers, which clear any ice build-up on the pilot’s windshield.
No Runway, No Worries With The 29” Tire Upgrade.
These larger tires provide improved handling and durability on rugged backcountry airstrips, and they also increase the landing weight to 7,255 lbs. If you’re thinking about remote operations, these tires are worthy of consideration.
Get Off The Water Quickly With Pitch Latch Propeller.
For those operating the Kodiak on floats, the pitch latch propeller allows the propeller to stay in a fine-pitch position when the engine is shut down. With the propeller in fine-pitch on start up, it takes less time to produce forward thrust to begin taxiing.

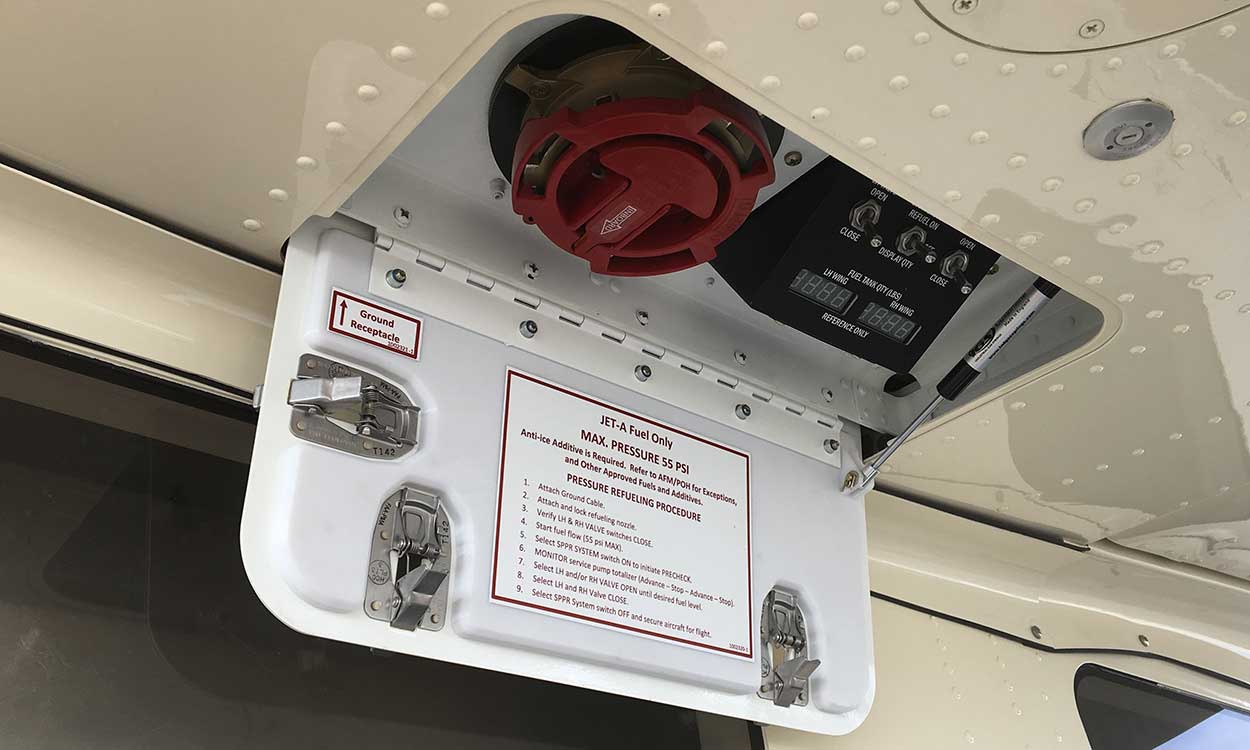

LIFE JUST GOT EASIER WITH SINGLE-POINT REFUELING (STC).
Located at the left wing root, this option gives the operator a simple, clean and easy way to quickly refuel both wing tanks utilizing one port. This option is installed as a post delivery STC.

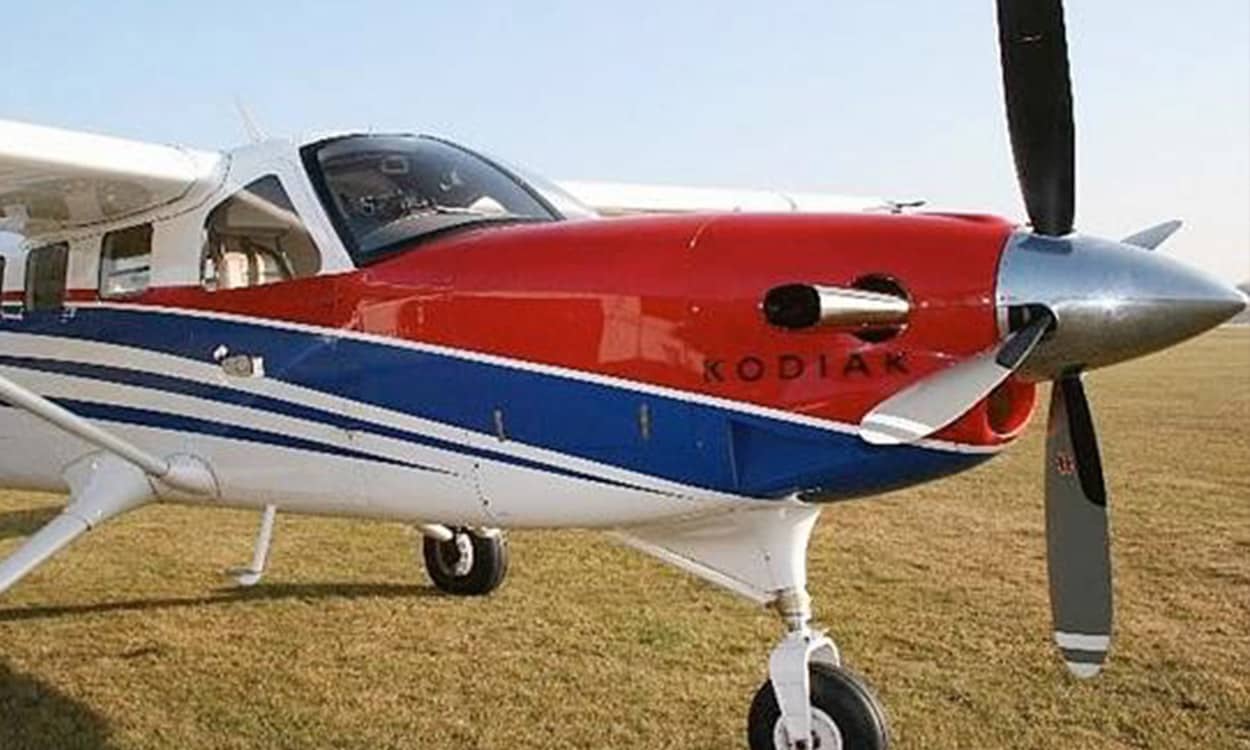

Turned-Out Exhaust Stacks
Recommended for use with the optional aftermarket roll down door, the turned-out exhaust stacks direct exhaust away from the fuselage and reduce fumes near the aft door.

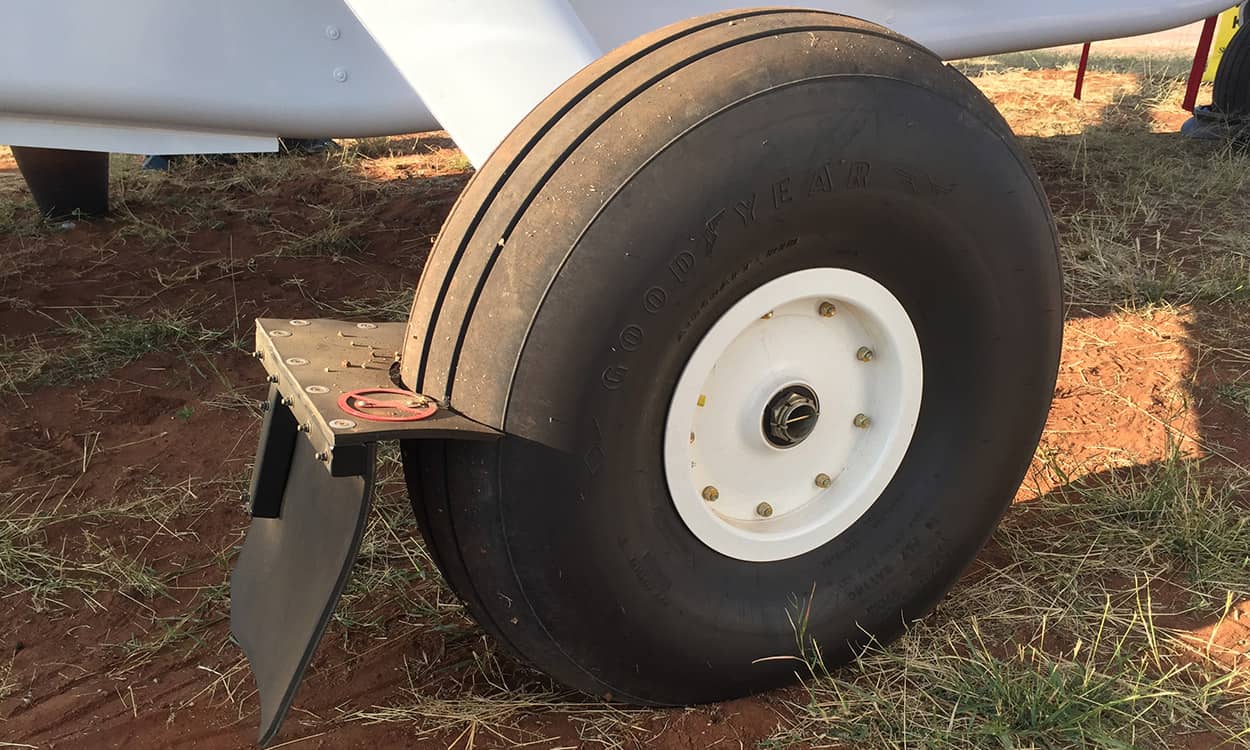

Keep It Clean With Gravel/Mud Deflectors.
The gravel and mud deflectors reduce debris impacts and accumulation when landing on unprepared landing strips. This is especially useful for backcountry operations.

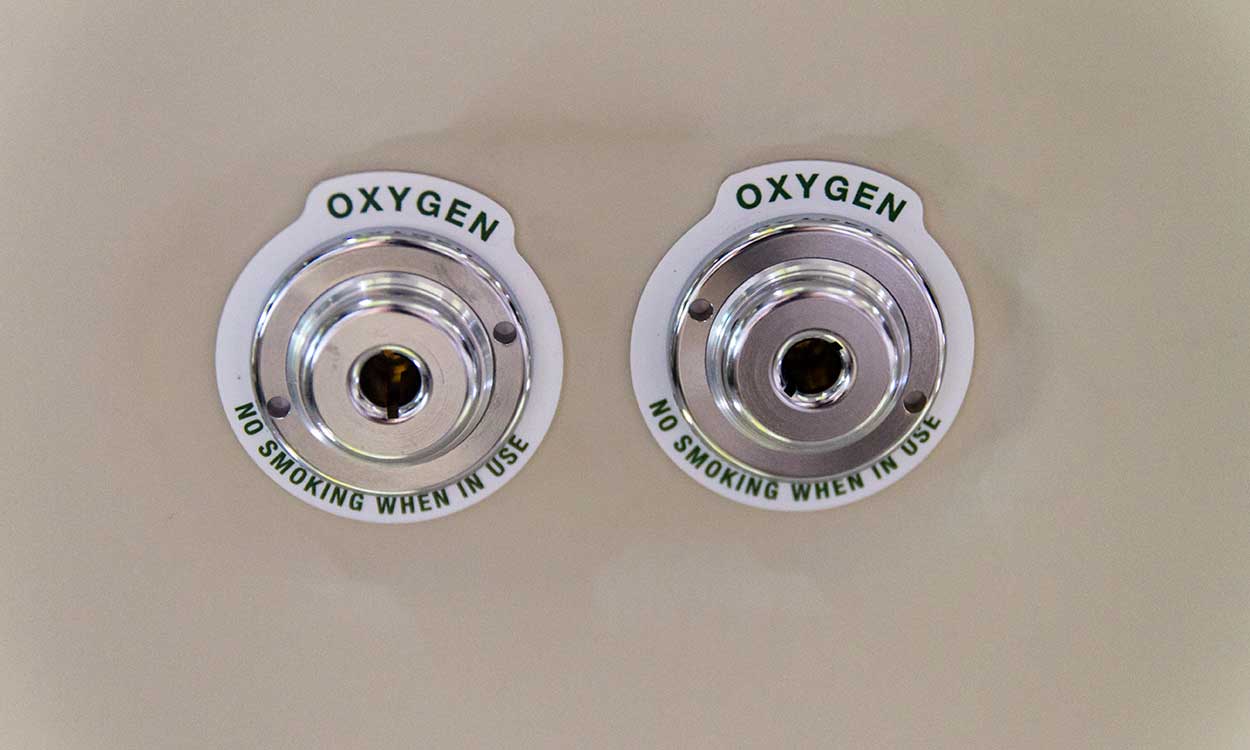

BREATHE EASY WITH 10-PLACE OXYGEN UPGRADE.
To increase the endurance of the airplane and operate at higher altitudes, this upgrade replaces the 50 cubic foot 2 place oxygen bottle with a 115 cubic foot composite oxygen bottle and adds ports for 8 passengers. Also included are 2 crew masks with built-in microphones and 8 passenger masks.

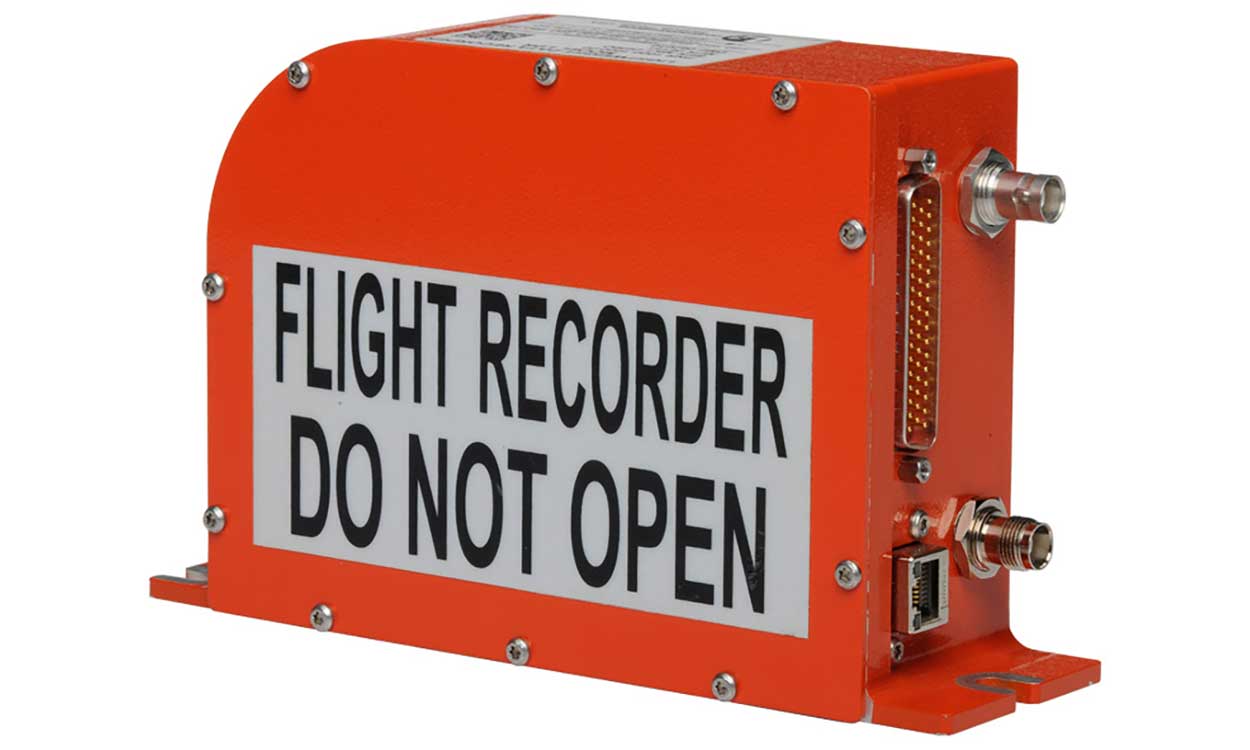

IT’S YOUR CHOICE WITH COCKPIT VOICE & DATA RECORDERS.
The Kodiak has the ability to be optioned with a Cockpit Voice and Data Recorder. Different CVDR options may include a crash survivable memory unit, underwater locator beacon or independent recorder power supply.

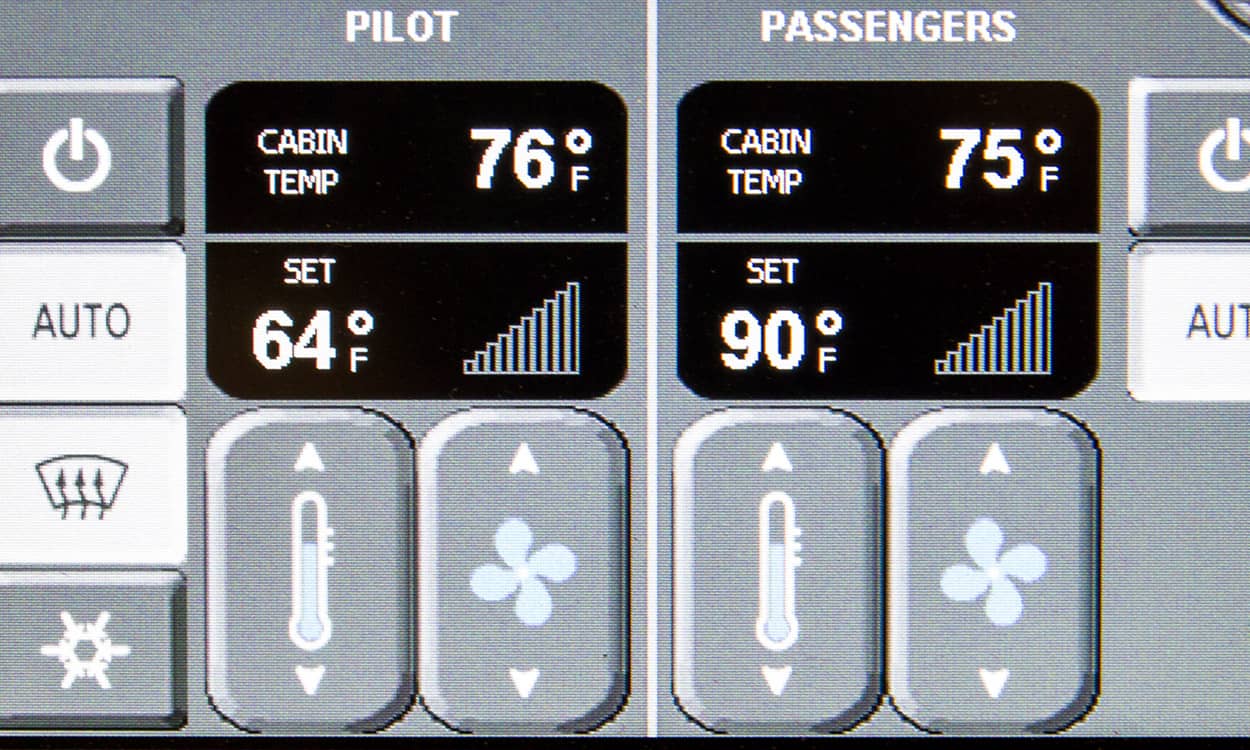

KEEP IT COOL WITH ADVANCED AIR CONDITIONING.
Temperature controlled air can be distributed throughout the cabin via adjustable air outlets above the seats. The front pilot area and the rear passenger area can be separately controlled through the digital touch screen display.

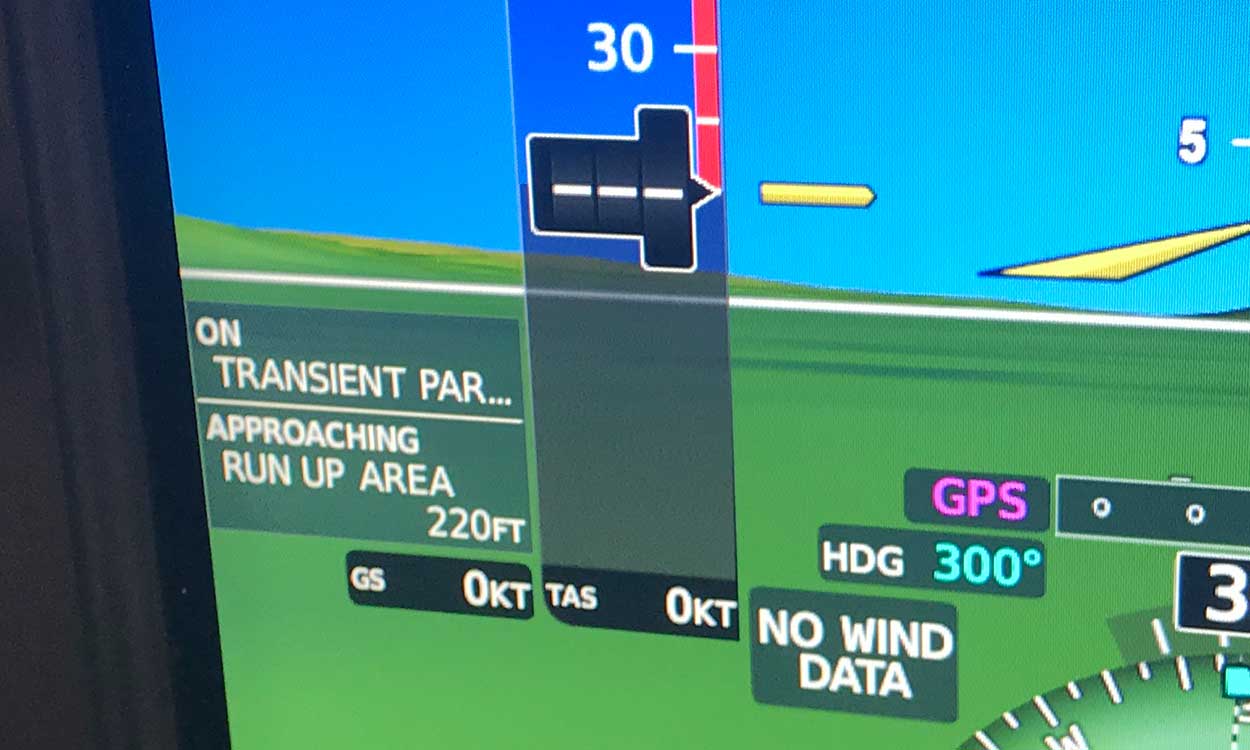

OPERATE MORE SAFELY AROUND AIRPORTS WITH GARMIN SURFACEWATCH.
Kodiaks equipped with optional Garmin SurfaceWatch will have help in avoiding runway incursions and operating safely in the airport environment. Warnings will appear when taking off or landing on the wrong runway or on a runway that is too short.

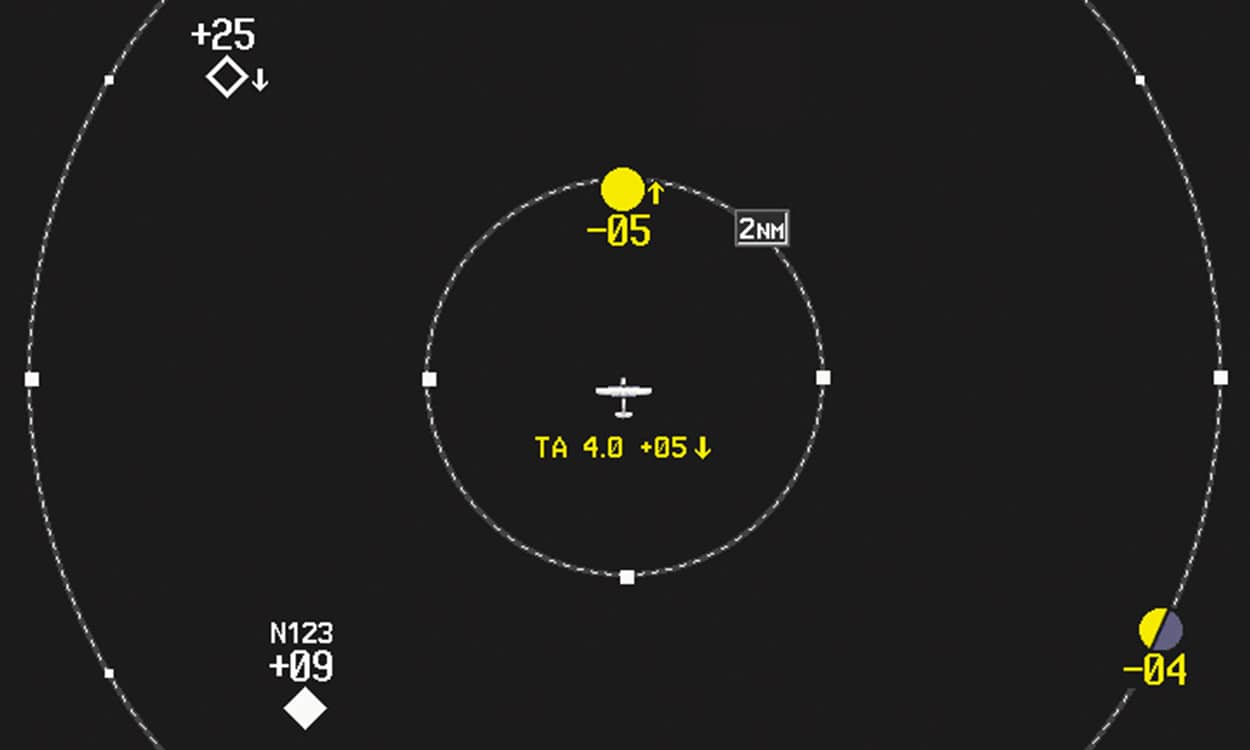

Monitor Traffic With GTS 800 TAS.
This Traffic Advisory System (TAS) provides accurate, dynamic traffic surveillance by displaying nearby aircraft positions and providing ATC-like spoken audio alerts to help you quickly respond to potential flight path encroachments. Provides enhanced safety in busy airspace or where no ATC radar services are provided.

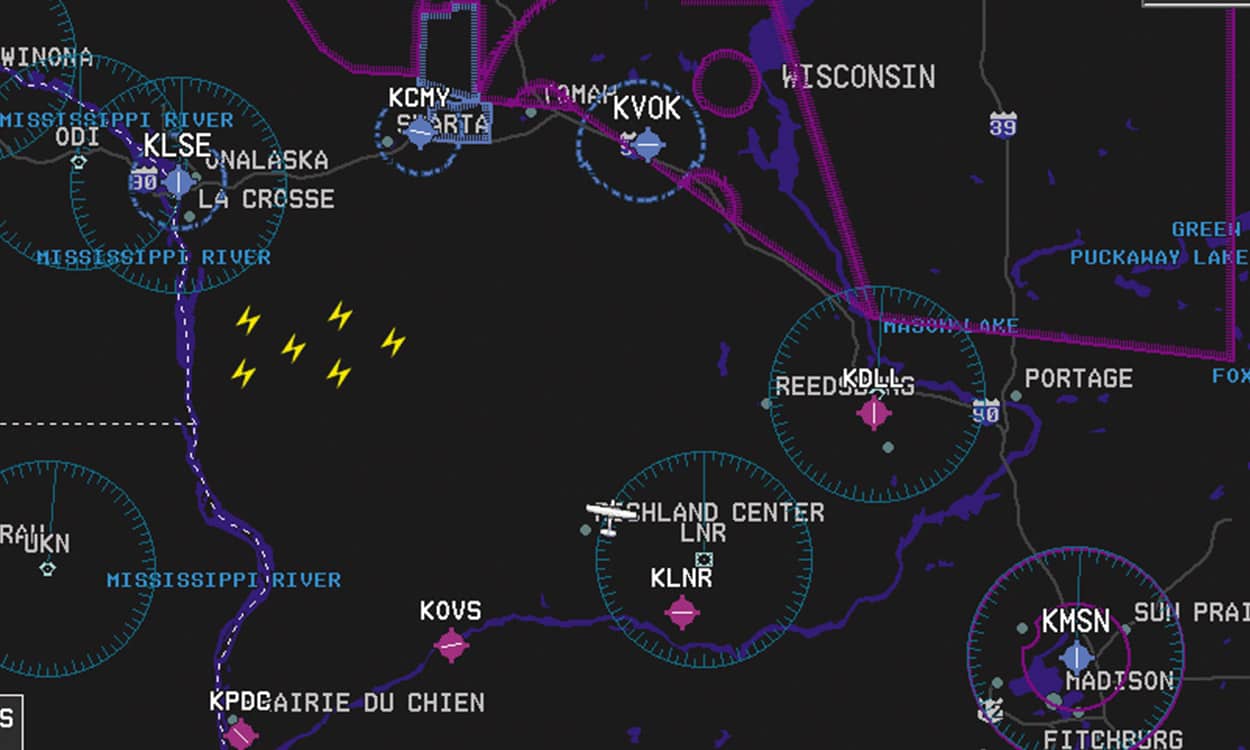

See It And Avoid It. WX-500 Stormscope.
The Stormscope allows pilots to make better route decisions in changing weather. The technology detects electrical discharge from storm cells and accurately displays areas of storm activity on the G1000 NXi.

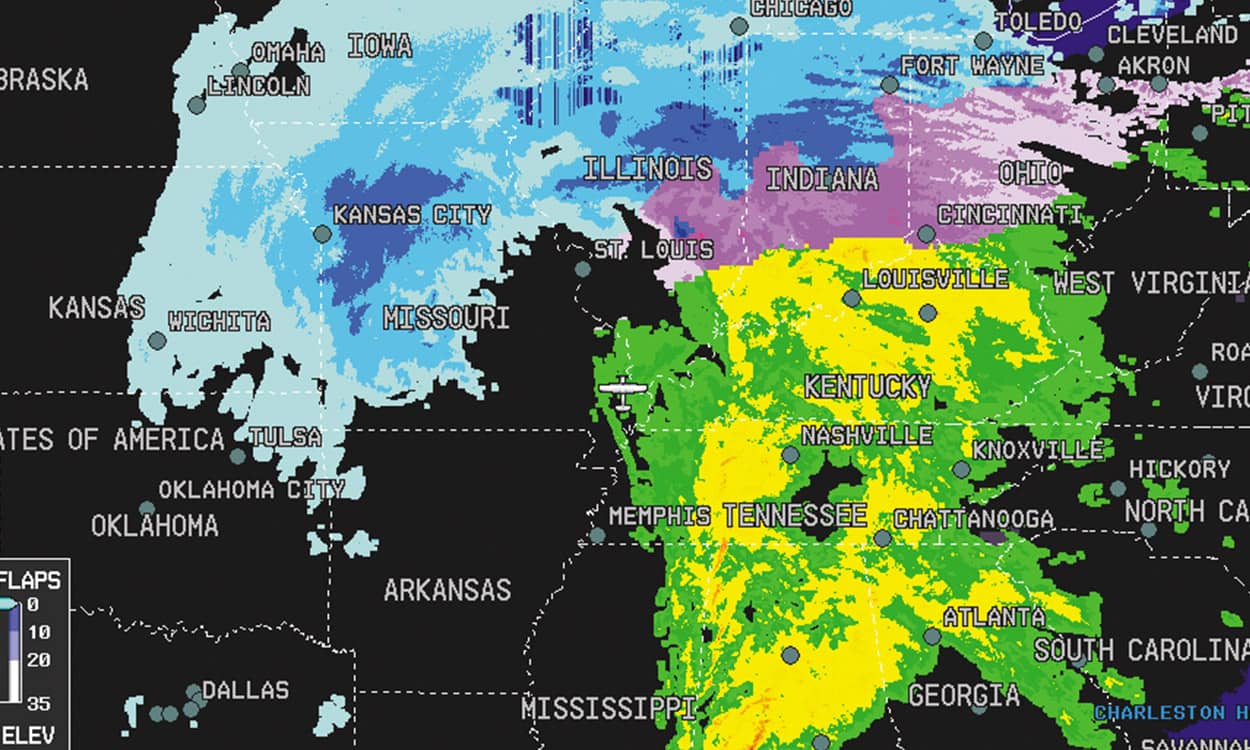

INCREASE SITUATIONAL AWARENESS WITH THE GDL-69A XM DATA LINK.
From takeoff to landing, XM WX Satellite weather information boosts situational awareness through interactive graphical weather updates displayed on the G1000 NXi. You can also receive entertainment through 170 channels of music, news and sports.

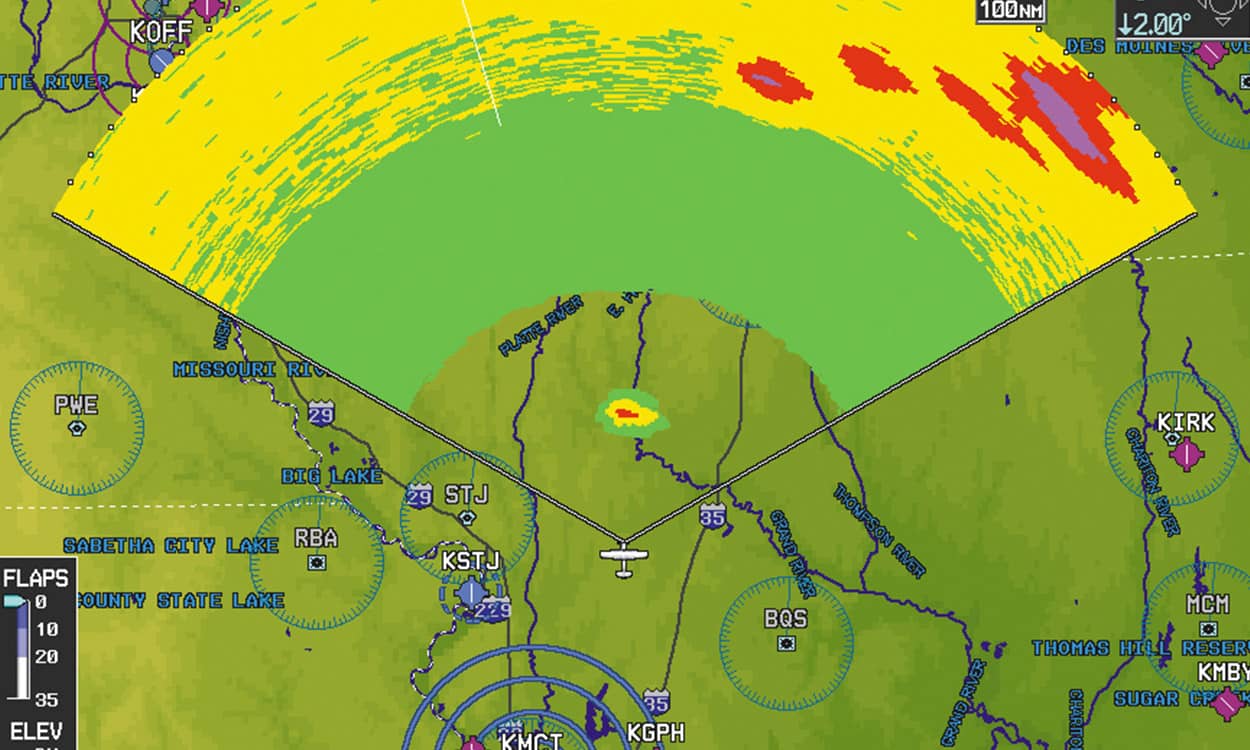

GARMIN GWX-70 WEATHER RADAR.

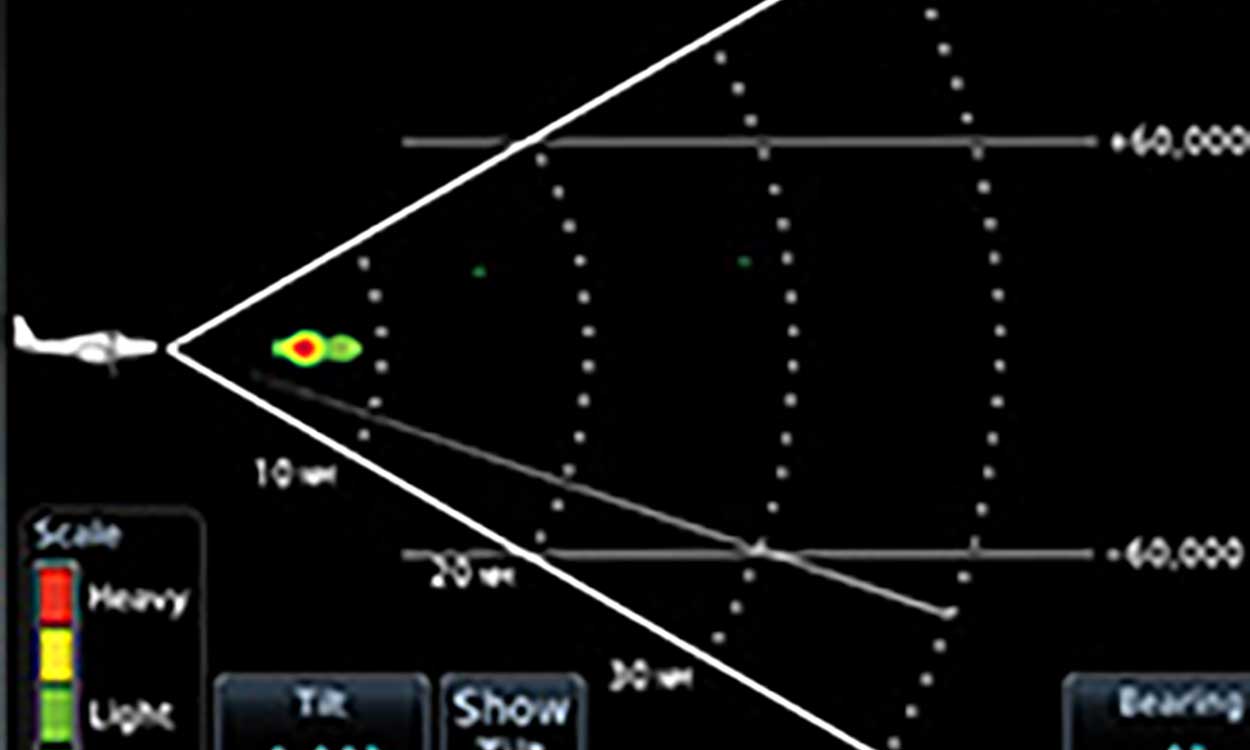

An upgraded option on Series II, the GWX 70 is an all-in-one antenna/receiver/transmitter that provides 4-color storm cell tracking to the G1000 NXi. The selectable scan (up to 90 degrees) and pulse range lets the pilot hone in on target areas, plus full pitch-and-roll stabilization is available for smooth weather tracking during climbs or turns. The side view vertical scanning function allows it to profile storm tops, gradients and cell buildup activity at various altitudes. Weather Attenuated Color Highlight (WATCH™) can identify areas beyond the radar’s capability that may contain more hazardous areas of precipitation.
TURBULENCE DETECTION WITH GROUND CLUTTER SUPPRESSION ENABLE CARD.
Turbulence Detection and Ground Clutter Suppression add additional functionality to the optional GWX-70 Weather Radar. Ground Clutter Suppression takes the guesswork out of interpreting what is on the screen by identifying radar ground returns and removing them from the display while turbulence detection can determine areas of turbulence that might contain particulates, like rain or hail.
Garmin Search and Rescue Card
The Garmin Search and Rescue feature allows for easy entry of search patterns into a flight path. This is fully integrated into the G1000 NXI so all the normal functions of a flight plan are incorporated (time, speed, distance, fuel remaining, etc.). The search and rescue flight plan can also be coupled to the GFC 700 autopilot allowing the pilot to be an extra set of eyes.

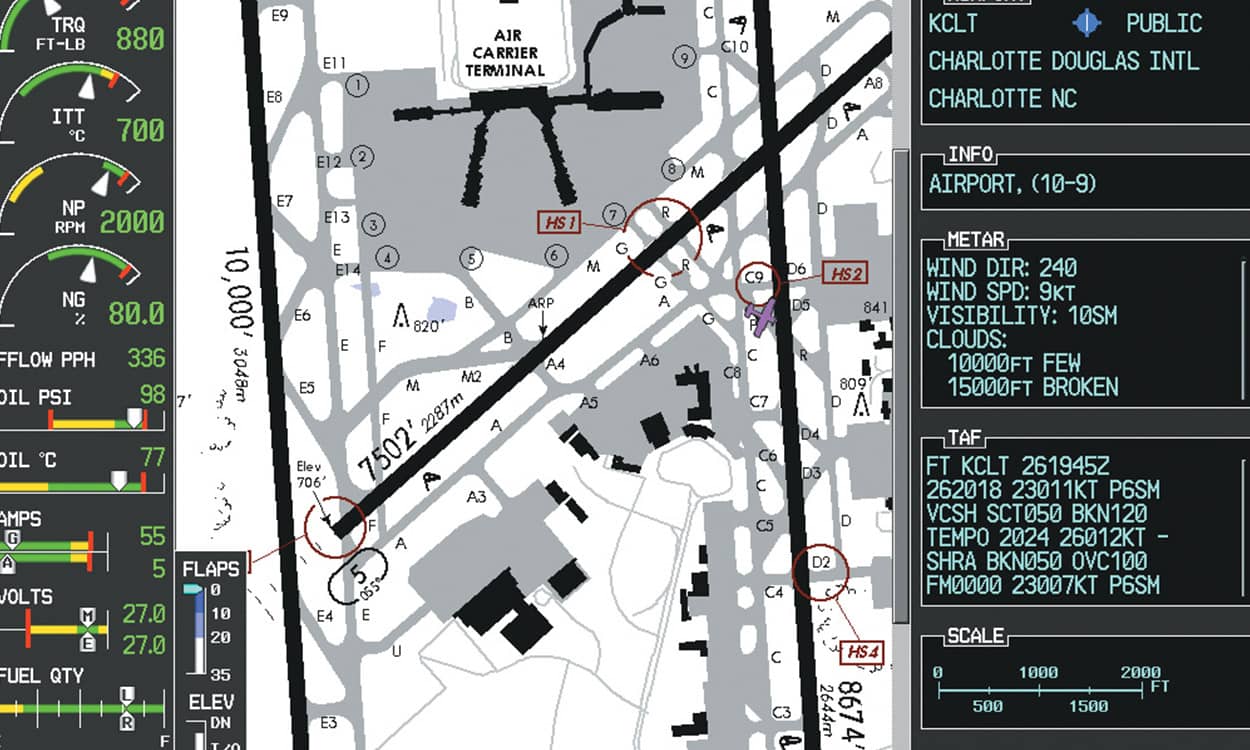

Jeppesen ChartView Card
This option brings an electronic version of Jeppesen’s extensive library of charts and airport diagrams directly to the Garmin G1000 NXi multi-function display. The pilot sees the aircraft’s present position on the chart. These electronic charts greatly reduce the amount of paper in the cockpit and help reduce pilot workload.

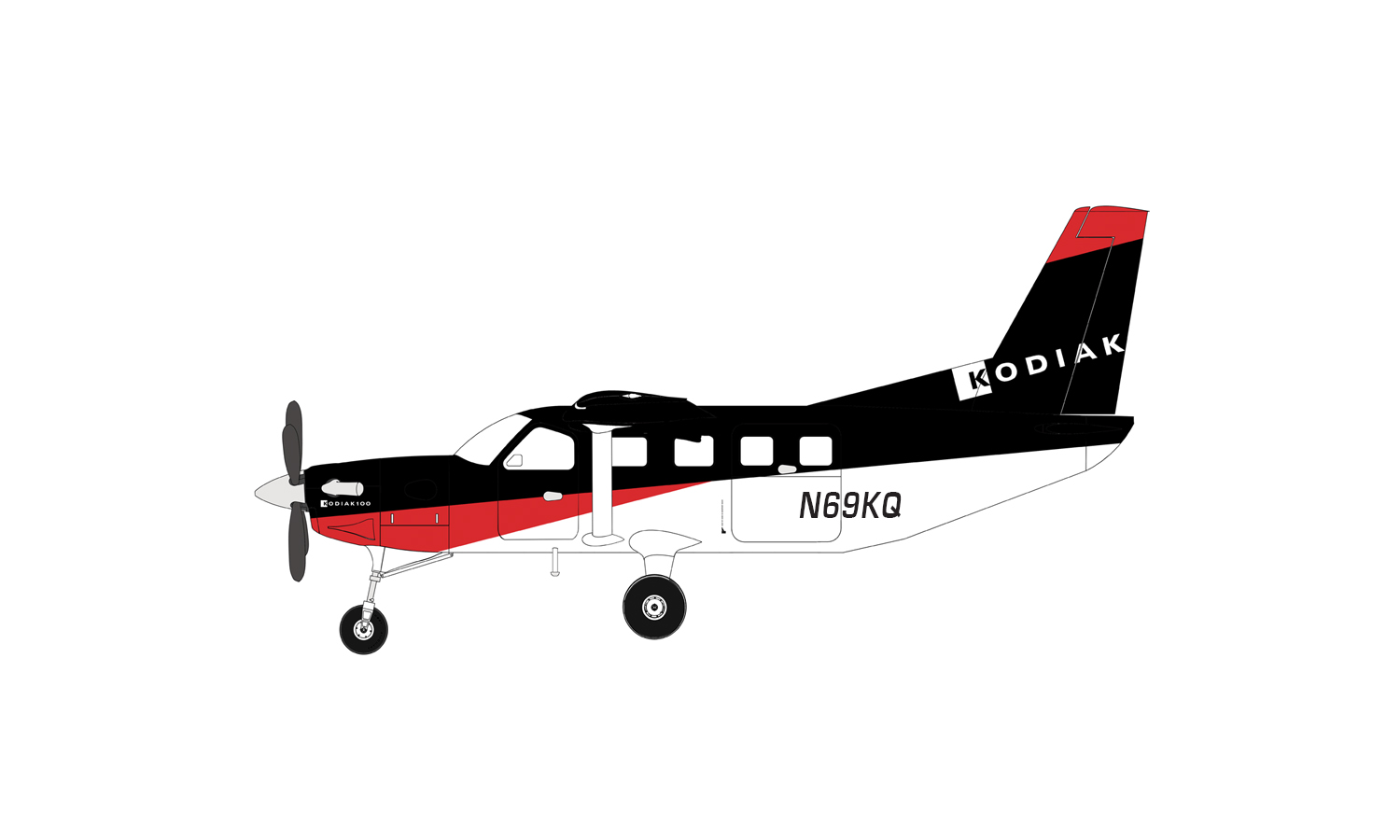

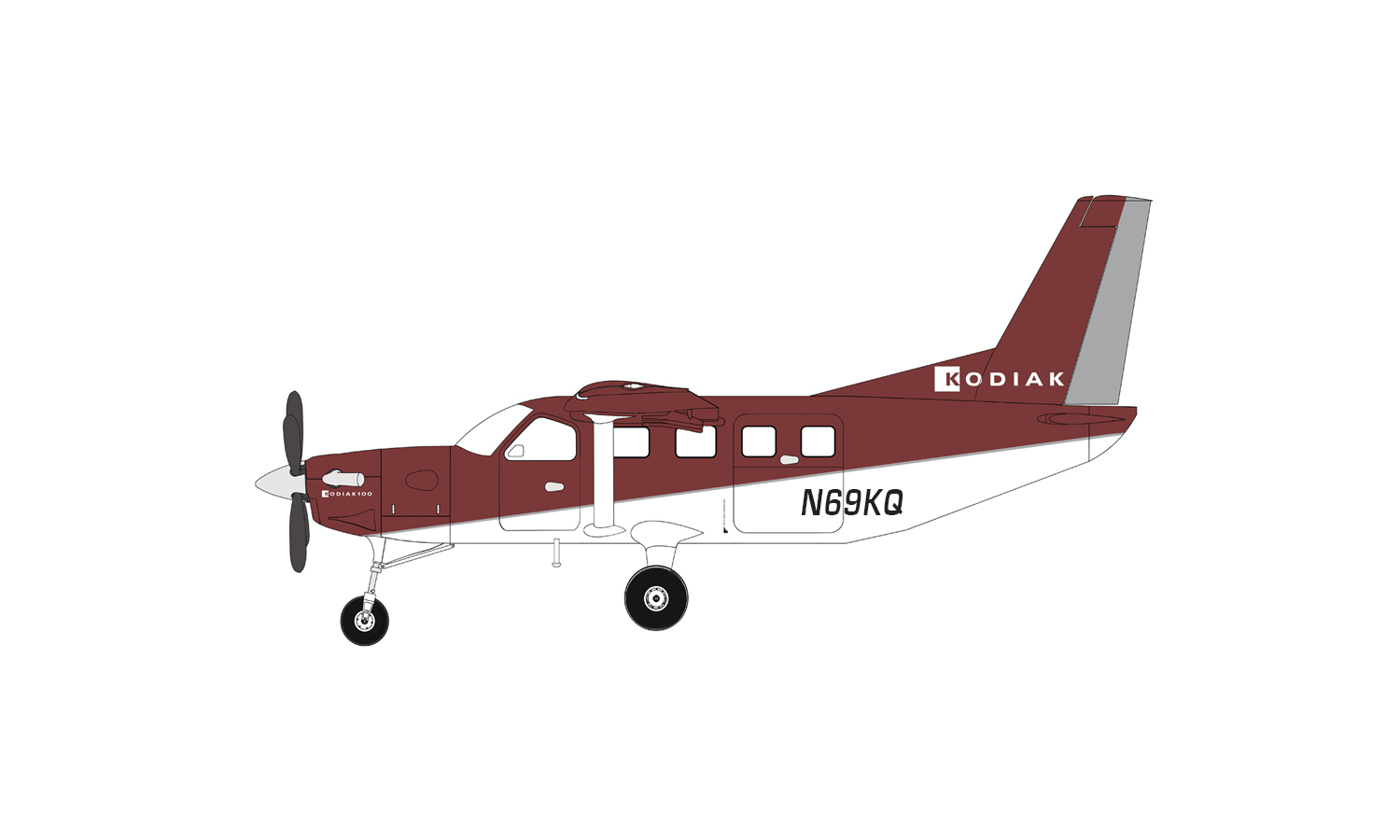

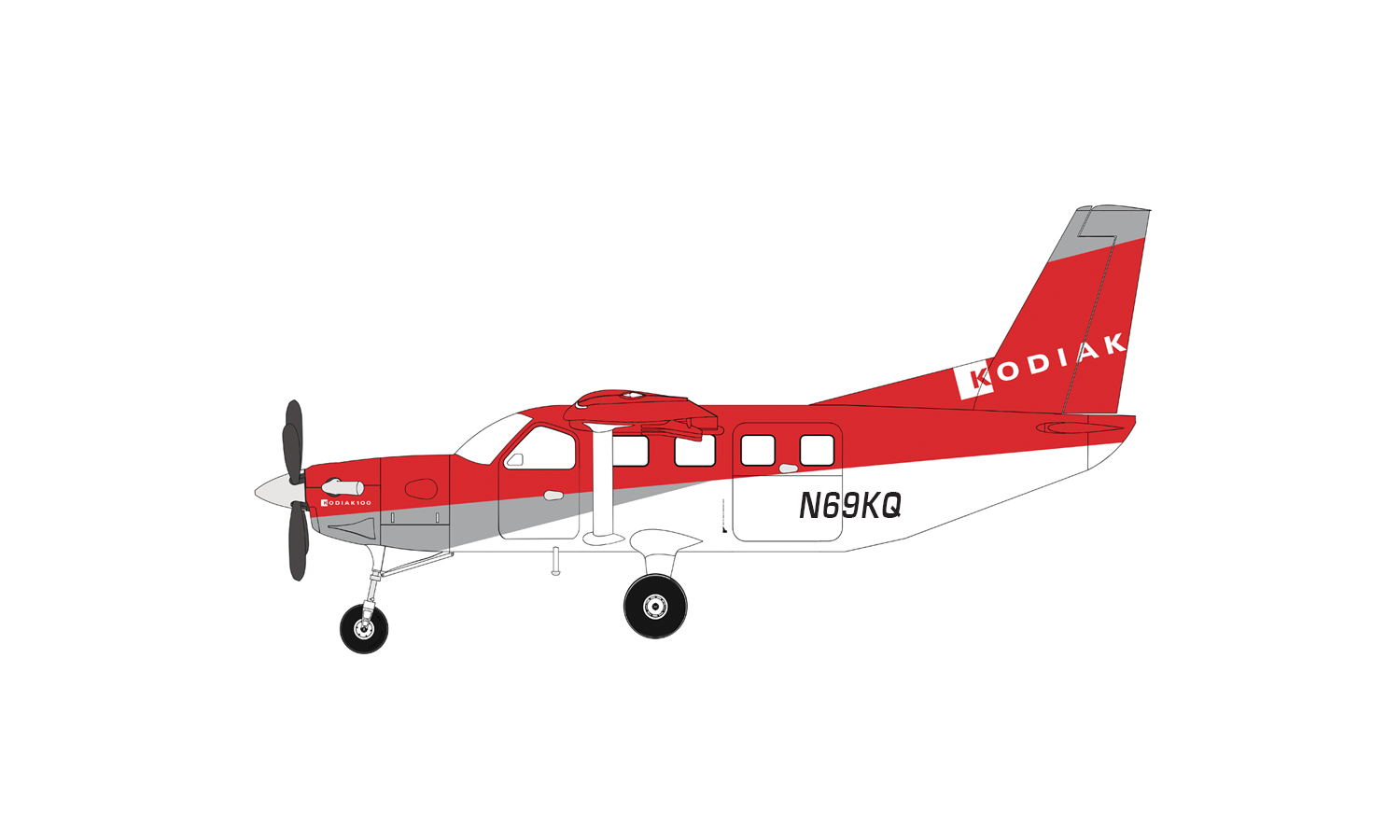

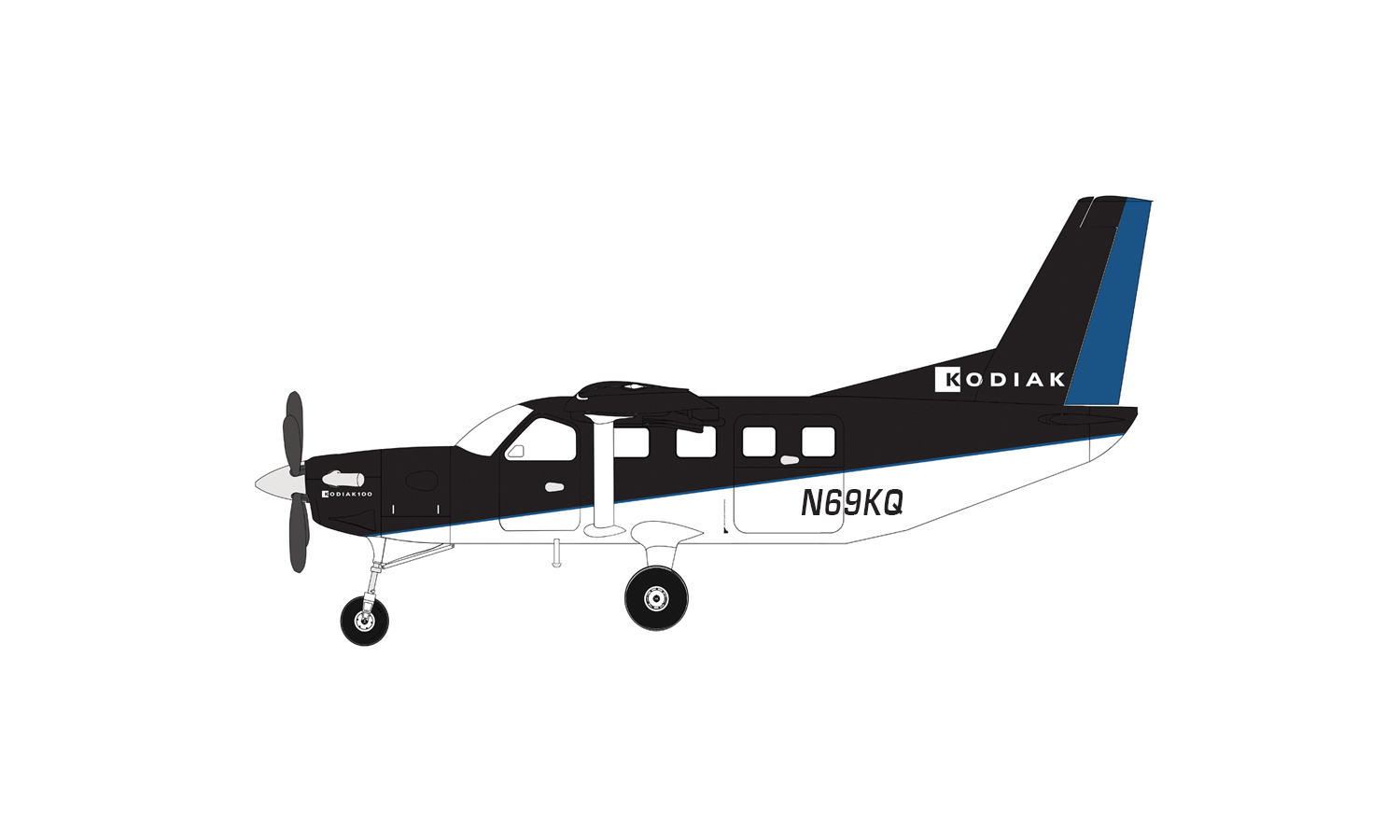

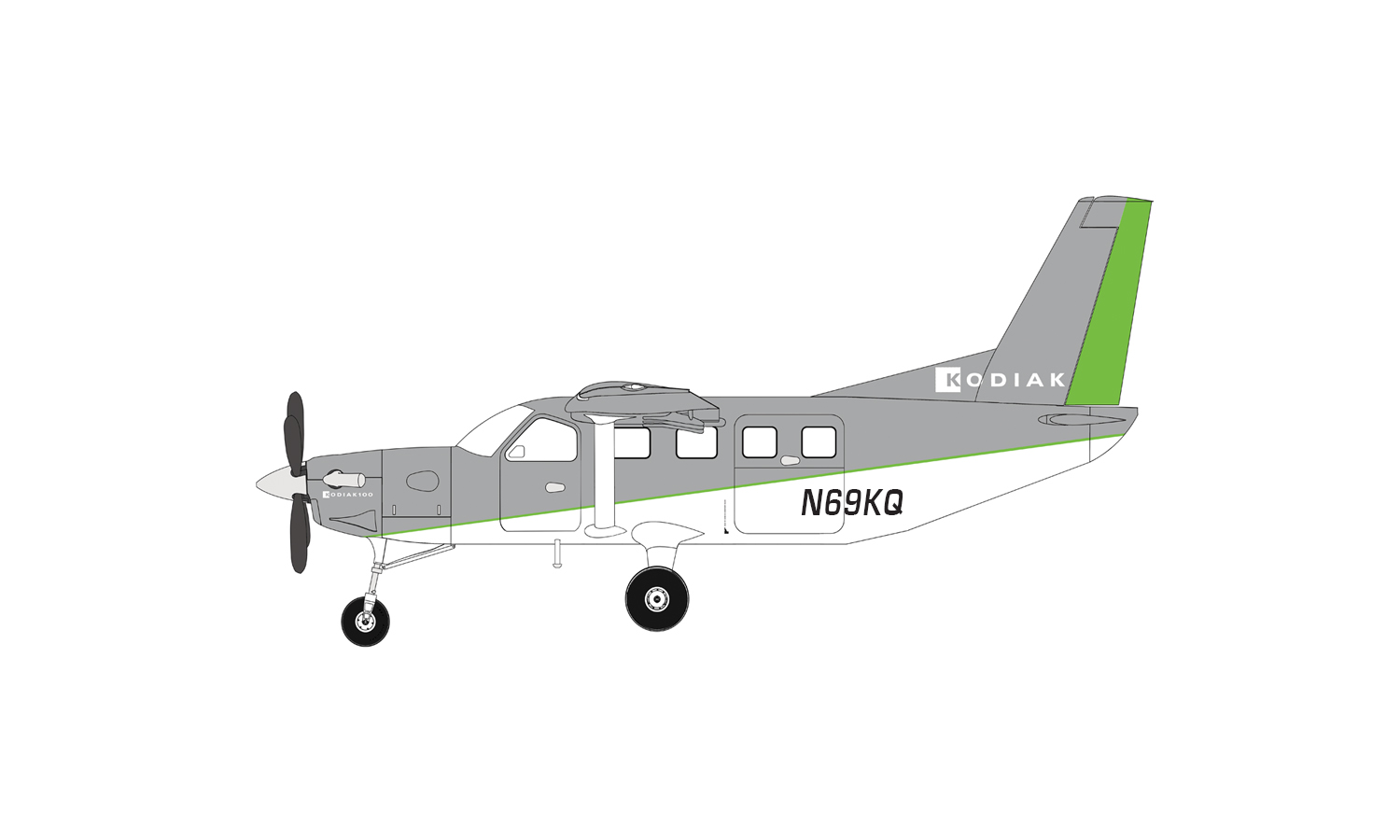

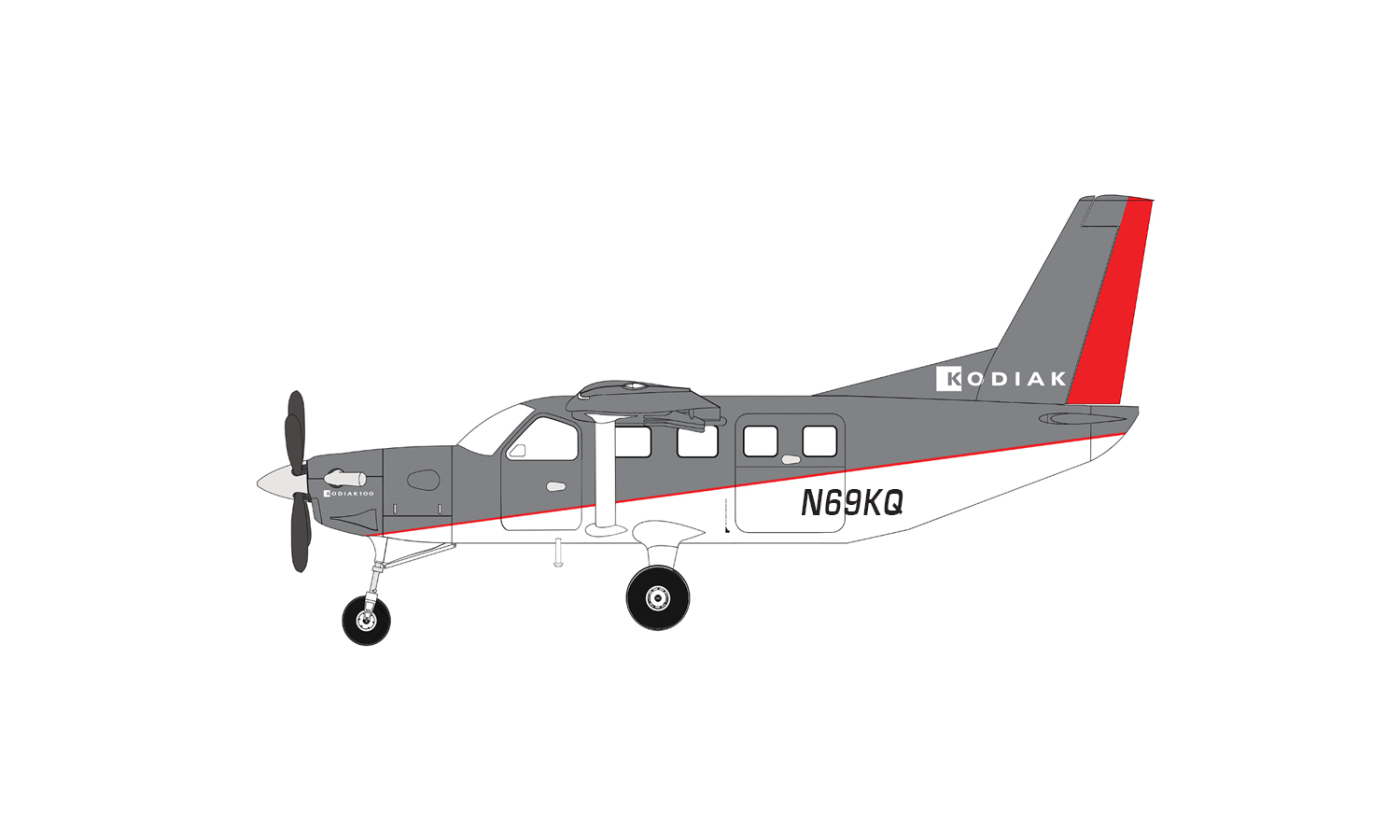

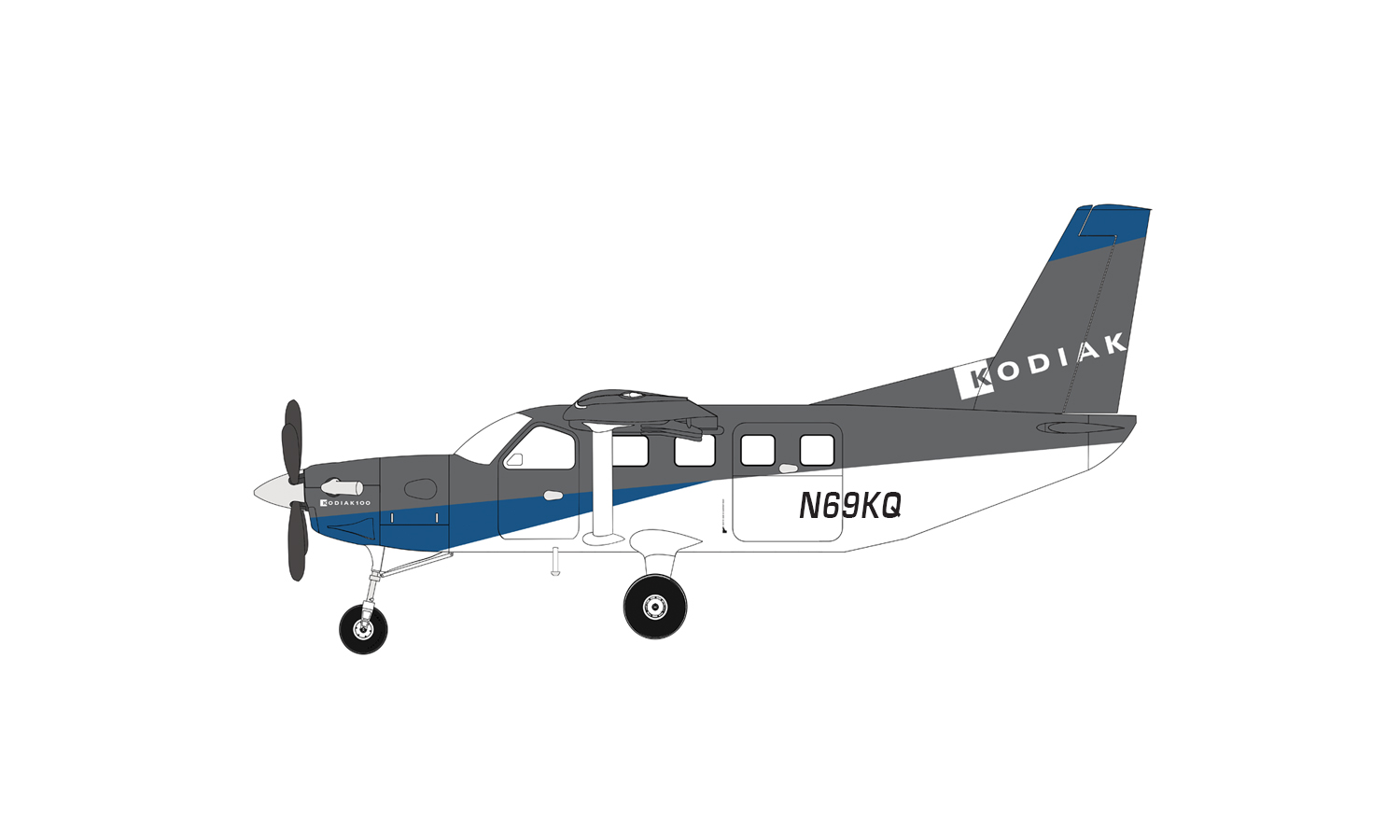

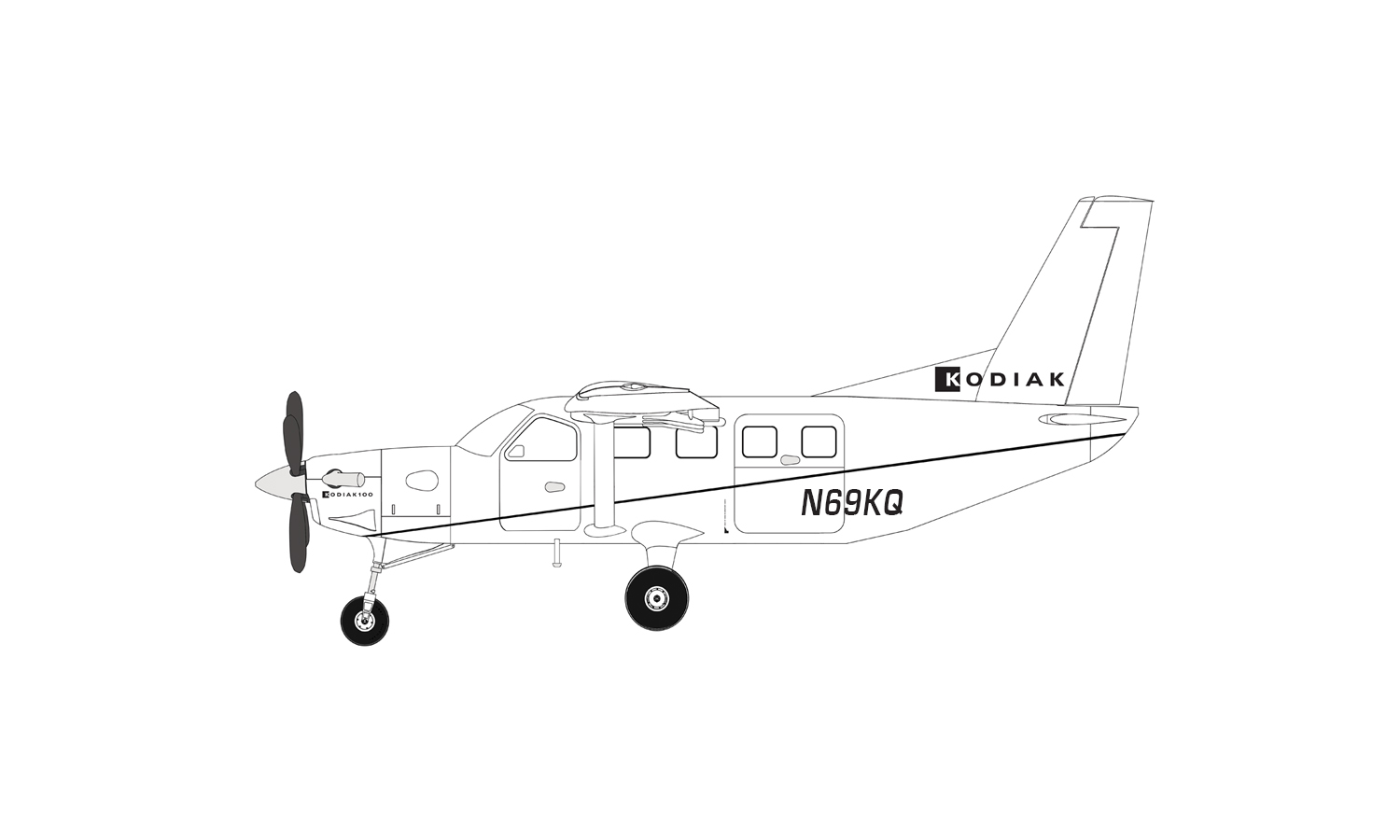

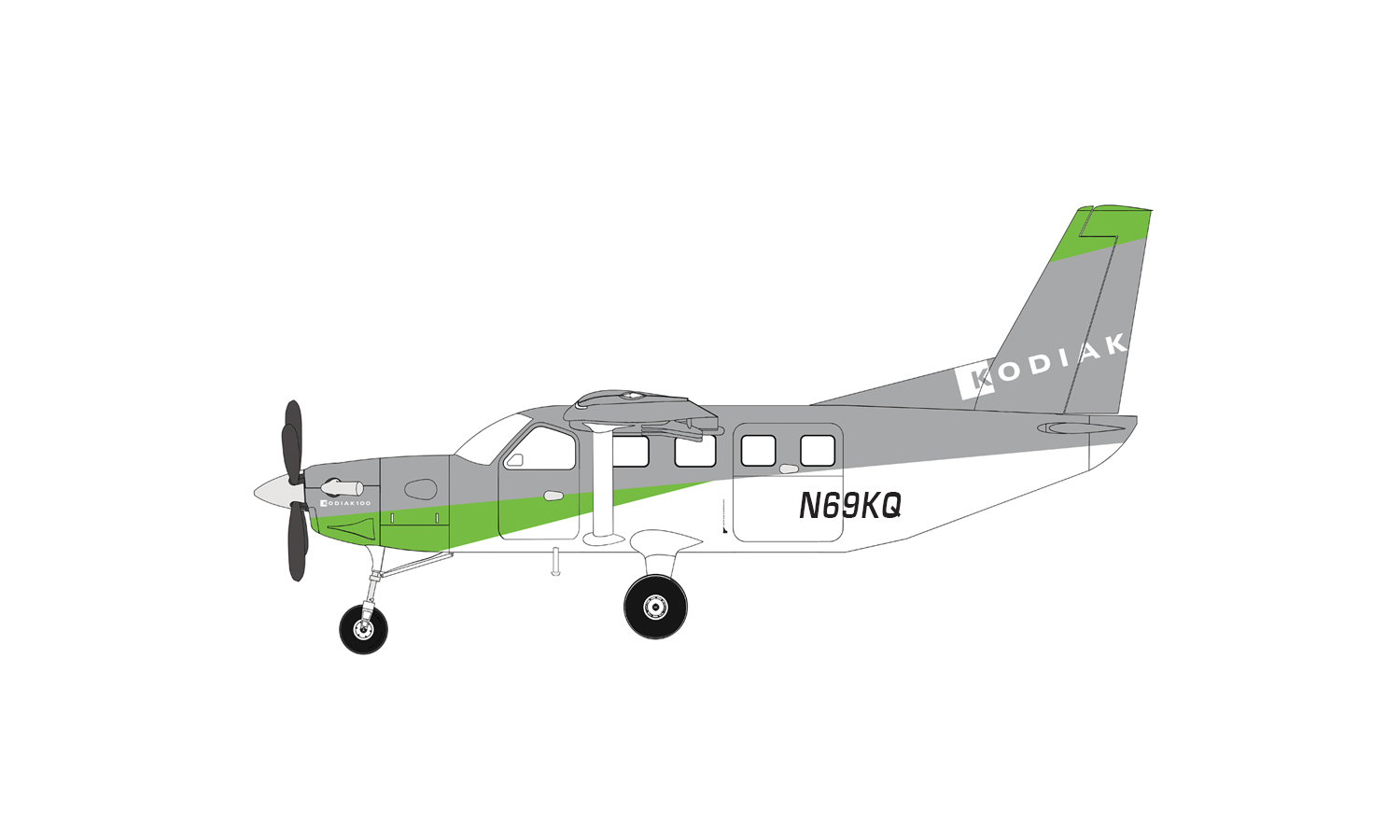

Paint Scheme Options

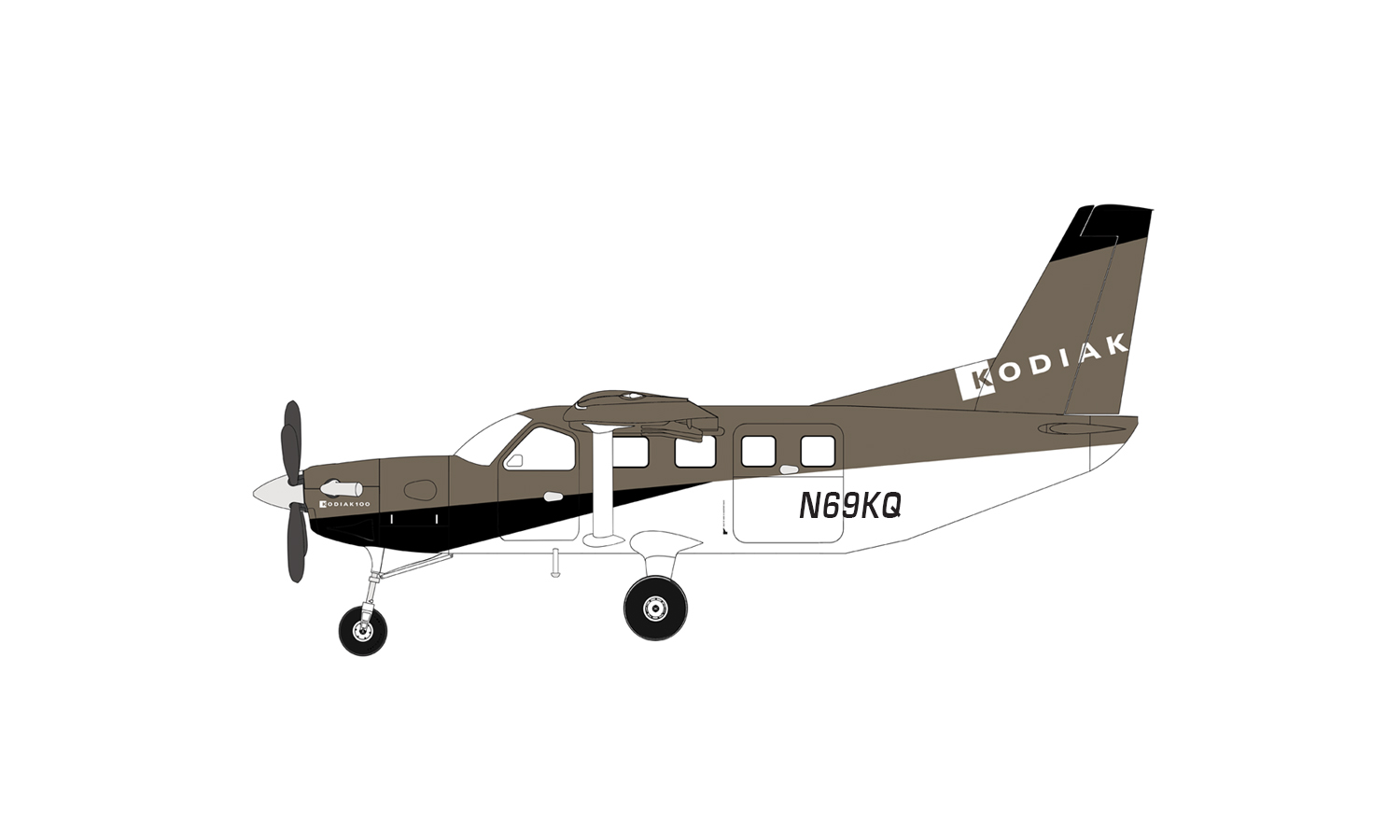

Your Kodiak can be delivered with any of nine standard paint combinations in two different paint scheme options. Custom paint schemes can be arranged at additional cost through your sales representative.
