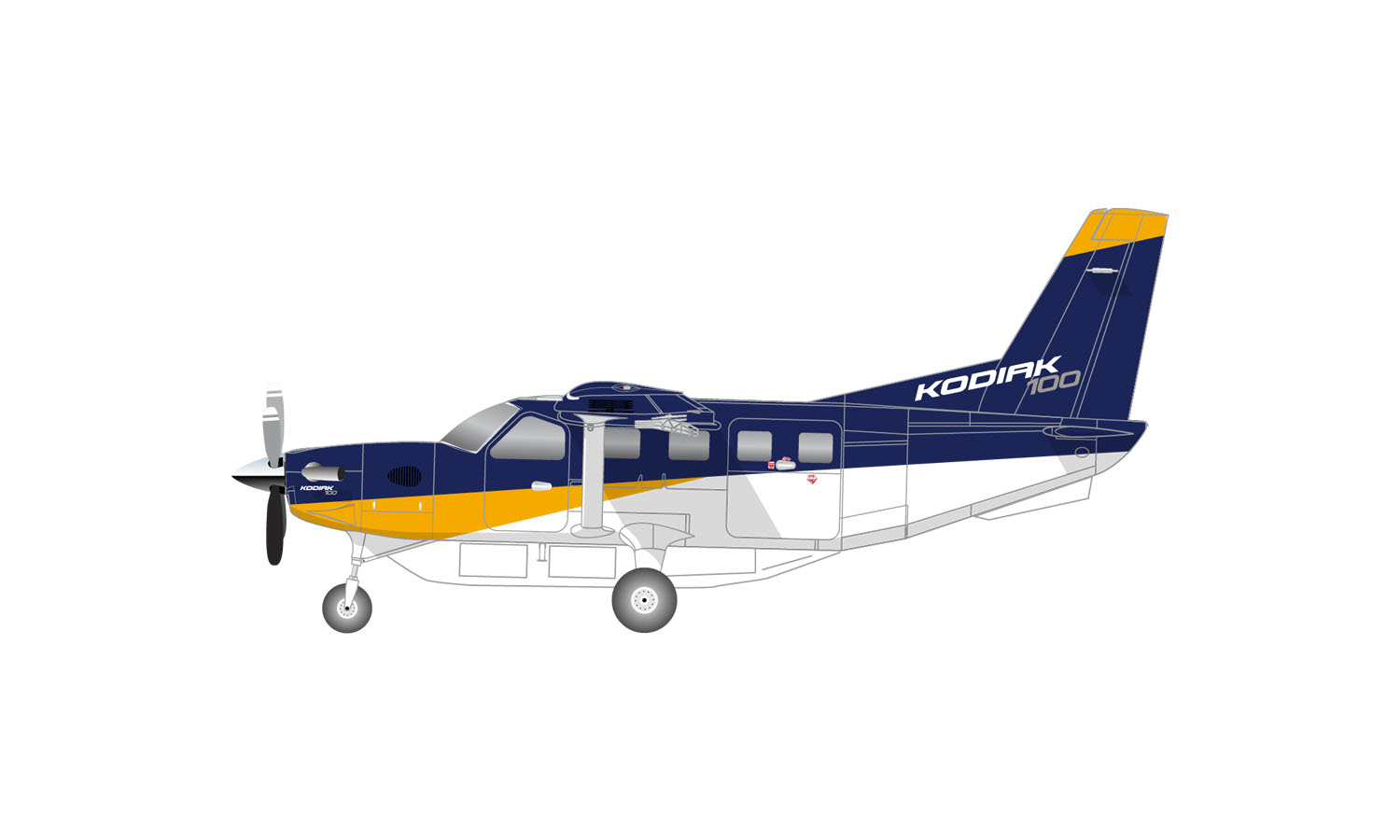

Kodiak 100 - Ready for Land, Water & Beyond

Power you can count on

At the heart of the Kodiak 100, the Pratt & Whitney Canada PT6A-34 works alongside Hartzell’s five-blade composite propeller to deliver dependable performance, greater comfort, and the confidence to operate beyond conventional runways.

Proven power, wherever you fly

Delivering 750 shaft horsepower, the PT6A-34 provides the power needed to carry passengers, equipment, and cargo into demanding environments. Its performance is there when it matters most — during takeoff, climb, and operations from short or challenging airstrips.

Shorter takeoffs, greater possibilities

Designed specifically for Kodiak aircraft, the five-blade Hartzell composite propeller reduces takeoff roll, reduce vibration and increase operational efficiency. A real advantage when every foot of runway matters.

Exceptional STOL performance

Designed to access backcountry and unimproved strips with ease.

Less noise. More comfort.

Turning more slowly than the four-blade metal propeller, the five-blade design reduces noise and vibration. The result is a smoother, quieter experience for everyone on board — and a lower noise footprint on the ground.

Proven power. Five-blade efficiency. Built to take you further.

Performance that takes you further

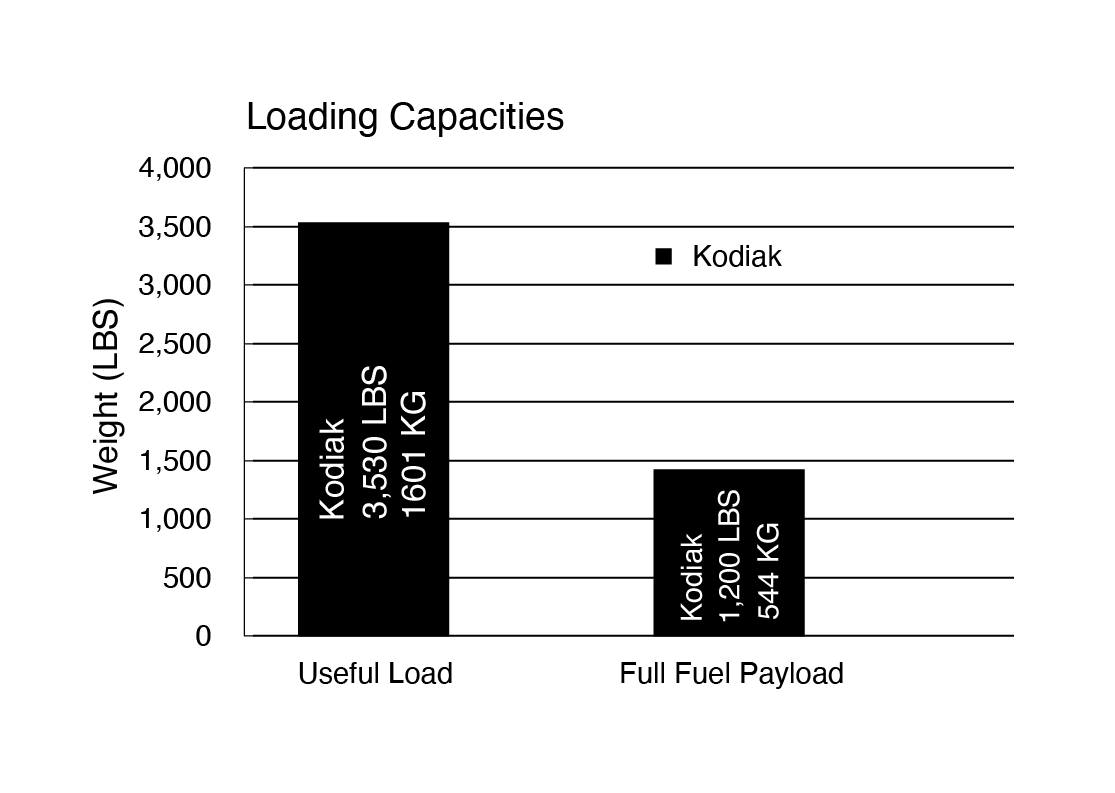

Weights & loading

Maximum Takeoff Weight

7,255 lbs

Base Aircraft Empty Weight (*)

4,132 lbs

Base Aircraft Useful Load

3,123 lbs

Usable fuel capacity

311 gal

Performance

Max Cruise Speed

183 KTS

Stall Speed Vs0 (flaps down)

60 kcas

Rate of Climb (max cont at SL)

1,340 fpm

Takeoff Groundroll

934 ft

Landing Ground Roll

765 ft

Certified Ceiling

25,000 ft

Range and endurance

Range at maximum speed (174 ktas, 12,000 ft)

1,005 nm

Maximum Range Cruise (135 ktas, 12,000 ft)

1,132 nm

Maximum endurance (95 ktas, 12,000 ft)

944 nm

Flight surfaces

Wing Area

240 ft²

Dihedral

3°

Flap Type

Fowler

Horizontal Span

20 ft 4 in

Overall Height

14.7 ft

5-blade hartzell propeller

Diameter

96 in

Clearance

19 in

Noise at takeoff

77 dB (A)

Ground roll

879 ft

Powerplant

Maximum Takeoff Power

750 hp

Maximum Continus Power

700 hp

Fuel Capacity

320 gal

Confidence begins with the wing

At the heart of the Kodiak 100's exceptional handling characteristics is a distinctive wing design unlike any other in its class. The discontinuous leading-edge design combines two high-performance airfoils that work together to maintain predictable handling and controllability throughout the flight envelope.

As airspeed decreases, the wing's unique aerodynamic characteristics enable the aircraft to retain roll authority at speeds approaching stall conditions, providing pilots with added confidence during slow-flight operations. Vortex generators on both the wing and horizontal stabilizers further enhance low-speed performance by improving airflow and delaying aerodynamic stall.

The result is an aircraft that combines exceptional short-field capability with handling qualities that inspire confidence during every phase of flight. This predictable behavior is a benefit for all pilots, whether they are high-time aviators or with less experience and stepping into the Kodiak category, as well as for those transitioning from rotary-wing aircraft – which is especially important for the law enforcement sector.

Modern flight deck, proven safety

The Garmin G1000® NXi integrated flight deck combines intuitive operation with advanced situational awareness to help reduce pilot workload while enhancing operational safety. Designed for single-pilot operations, the cockpit provides the information needed in a clear, highly integrated environment.

Standard equipment includes the GFC 700 digital autopilot with Electronic Stability and Protection, Synthetic Vision Technology, SurfaceWatch runway monitoring, an Angle of Attack indicator, Garmin GDL 60 datalink, and ADS-B capability.

Enhancements on the Kodiak 100 Series III further expand the cockpit experience with features such as Runway Occupancy Awareness, Taxiway Routing, Cockpit Assisted Visual Separation and enhanced terrain awareness.

Together, these technologies create an environment that supports confident decision-making while helping crews maintain awareness from engine start through landing.

Garmin GFC700 Autopilot

The autopilot control panel integrates advanced safety features, including Electronic Stability Protection (ESP), Level Mode, Underspeed Protection, and Coupled Go-Around capabilities, helping reduce pilot workload while enhancing safety and confidence throughout every phase of flight.
Primary flight displays (PFD)

Standard features like Synthetic Vision and an integrated moving map provide essential flight information—including traffic, terrain, weather, navigation aids, and obstacles. A frequency identifier displays the name of the tuned facility for added clarity, while available SurfaceWatch technology enhances runway safety.
Multifunction Display (MFD)

Enhances situational awareness and flight planning with a Vertical Situation Display that provides a graphical view of the aircraft’s altitude. Integrated weight-and-balance tools allow pilots to calculate loading directly in the cockpit, while flexible moving map options display terrain, sectional, and IFR charts.
GDL 60

The Garmin GDL 60 provides advanced aircraft connectivity, enabling seamless communication between the avionics system and compatible mobile devices. Beyond EFB integration and streamlined data exchange, it also enables the Aircraft Status feature within Me & My Kodiak, giving operators remote visibility into key aircraft data before arriving at the aircraft and helping optimize preflight preparation and operational efficiency.
De-Ice Control Panel

Provides intuitive control of the aircraft’s ice protection systems, allowing pilots to quickly monitor and manage anti-ice and de-ice functions for safer operation in challenging weather conditions.
Cabin comfort management

The cabin customization interface provides quick and intuitive control of key cabin settings, allowing occupants to create the ideal environment for every journey.
Digital stand-by instruments

The MD302 electronic standby instrument provides independent backup flight information, including attitude, airspeed, altitude, and altitude trend data. It ensures pilots have access to essential flight information in the event of a primary avionics failure.

One aircraft. Countless possibilities.

A family escape, a remote place to reach, cargo to deliver or a mission that cannot wait — the Kodiak 100 adapts to what the day demands.

Its flexible cabin can transition between passenger seating, cargo transport and specialized layouts for medevac, surveillance, humanitarian support and other demanding operations. A large cargo door makes loading straightforward, while the optional cargo pod provides additional storage without taking up valuable cabin space.

An optional underfuselage cargo pod incorporates multiple compartments separated by internal bulkheads, enabling baggage and supplies to be organized while minimizing movement during flight.

From personal adventures to professional and government missions, the Kodiak 100 gives every journey a new purpose.

Explore Kodiak Experiences Multi-Mission Capabilities

DAHER - AIR TO AIR_BAHAMAS ©A MAGNAN-108_ENLARGED_ONLY KODIAK

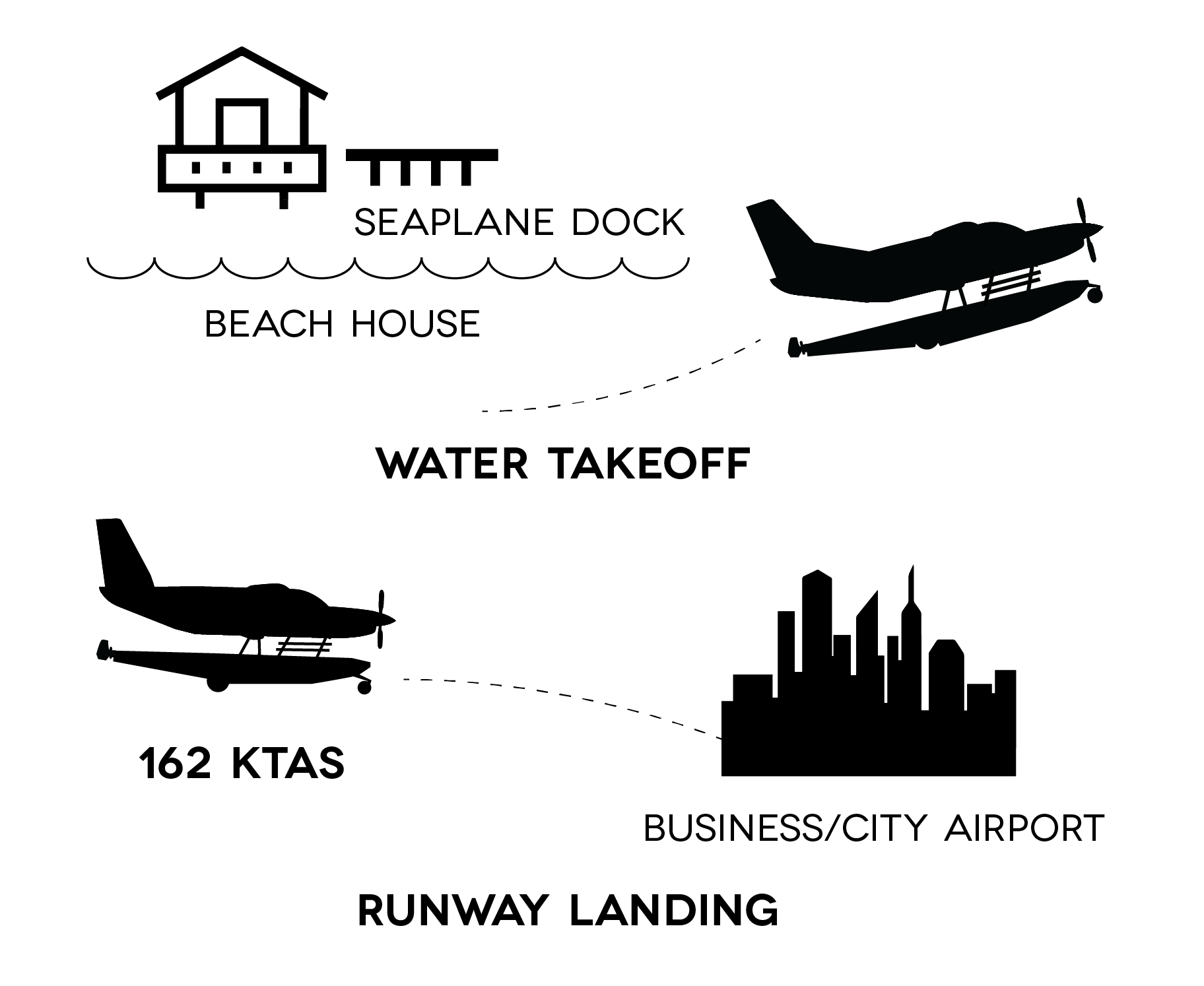

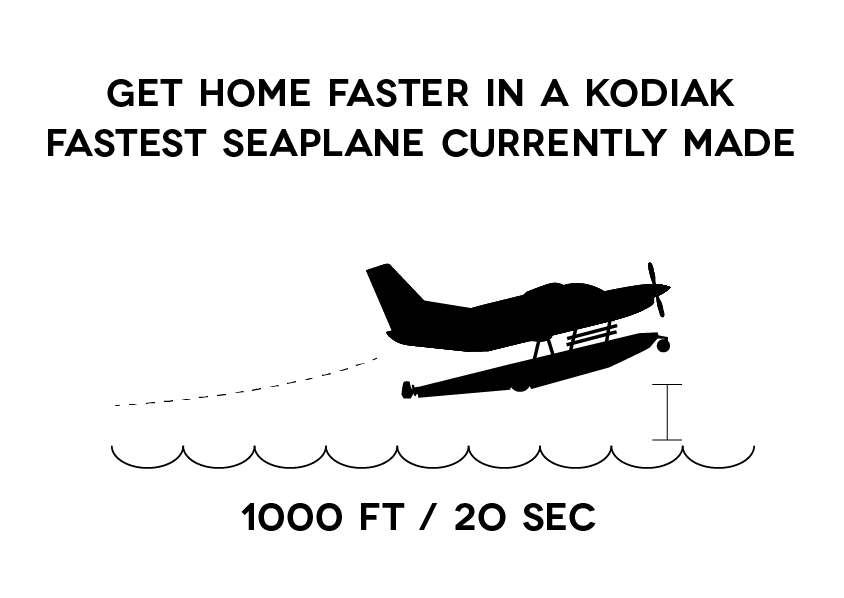

Where the runway ends, the journey begins.

The Kodiak 100 was made to take you beyond the ordinary. From remote airstrips to open water, its rugged design, short takeoff and landing capabilities, and float-ready construction open up destinations few aircraft can reach.

The pitch latch propeller allows operators of float-equipped Kodiak 100s to eliminate unwanted thrust around the dock by enabling the propeller to stay in a fine pitch when shutting down – giving greater control and safety during float operations.

The lower fuselage skin-gap sealant further enhances the Kodiak’s industry leading anti-corrosion process, preparing the aircraft for operation in high salinity environments.

No conventional runway? No problem. With the Kodiak 100, the most memorable experiences often begin where the map runs out.

Comfort that adapts to you

The Kodiak 100 cabin is designed around the people, gear, and experiences brought on board. Fully adjustable seating and panoramic windows create a comfortable, open environment, while the flexible layout makes it easy to transition from passenger needs to cargo or mission-specific operations. Wherever the day takes you, the cabin adapts — without asking any compromise on comfort or capability.

Spacious Cabin & Legroom

The Kodiak 100’s spacious cabin gives every passenger room to relax and enjoy the journey. Generous legroom and a thoughtfully designed layout create a comfortable environment where everyone can travel with ease.
Flexible Seating Configuration

Mounted on quick-adjust seat rails, the seats can be easily repositioned to optimize legroom, cargo space, or passenger capacity, allowing the cabin to adapt seamlessly to every mission.
Enhanced Seating Comfort

Refined over successive generations of Kodiak aircraft, the latest seat design delivers improved comfort and support, making every flight more enjoyable for pilots and passengers alike.
Exceptional Cabin Headroom

The Kodiak 100’s tall cabin provides exceptional headroom throughout the interior, creating a more open and comfortable environment for every passenger. The generous cabin height helps occupants feel less confined, enhancing overall comfort during both short trips and long journeys.
Adjustable headrest

Provides personalized support and optimal seating comfort for passengers of all sizes, helping reduce fatigue and enhance the overall travel experience.
Dual-Zone Cabin & Cockpit Ventilation

Independent airflow controls for the cockpit and cabin allow pilots and passengers to maintain their preferred comfort levels, ensuring a pleasant environment throughout the flight.
Foldable side tables

Convenient fold-down tables on both sides of the cabin provide a practical surface for working, dining, or organizing personal items, enhancing comfort and versatility throughout the flight.
Foldable entry steps

It provides easy and convenient access to the cabin, simplifying boarding and unloading while maintaining the aircraft’s rugged utility and clean exterior design
Cabin color configuration

Warm brown or cool gray color finish options

Cabin Width

4 ft 6 in

Cabin Height

4 ft 9 in

Cabin length

15 ft 10 in

Cargo volume

248 cu ft

Overall length

34 ft 2 in

Doors

Door sill height

38 in

Cargo door height

49.25 in

Cargo door width
